j i case 1070

OverviewEngineTransmissionDimensionsTests
J.I. Case 1070 tractor photo
1970 - 1978 Model year 1970-19731974-1978 70 SeriesRow-Crop tractor
1970 - 1978
Model year 1970-19731974-1978
70 Series
Row-Crop tractor
1970 - 1978
Model year 1970-19731974-1978
70 Series
Row-Crop tractor
1970 - 1978
Model year 1970-19731974-1978
70 Series
Row-Crop tractor
Tractor Tests
NTTL 1035: diesel 8-speed 2WD
NTTL 1036: diesel 12-speed 2WD
NTTL 1066: diesel (2100 rpm) 12-speed 2WD
NTTL 1067: diesel 8-speed 2WD
Nebraska Tractor Test 1035

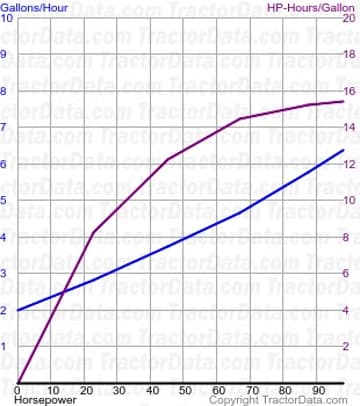

1070 fuel use from test 1035
1070 fuel use from test 1035
1070 fuel use from test 1035
1070 fuel use from test 1035
Nebraska Tractor Test 1035
Diesel 8-speed 2WD April 6 - May 2, 1970 Link: Nebraska Tractor Test 1035 file
PTO performance
Power at rated engine speed
100.73 hp 75.1 kW
Fuel use
6.5 gal/hour 24.6 l/hour
Power at rated PTO speed
96.50 hp 72.0 kW
Fuel use
6.1 gal/hour 23.1 l/hour
Drawbar performance
Max power
84.53 hp 63.0 kW
Fuel use
6.2 gal/hour 23.5 l/hour
Gear 4-Low used for power test.
Max pull
11203 lbs 5081 kg
Gear 2-Low used for pull test.
Nebraska Tractor Test 1036

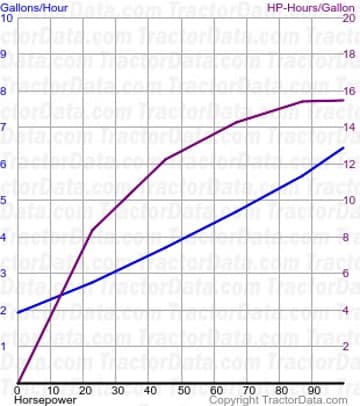

1070 fuel use from test 1036
1070 fuel use from test 1036
1070 fuel use from test 1036
1070 fuel use from test 1036
Nebraska Tractor Test 1036
Diesel 12-speed 2WD April 6 - 20, 1970 Link: Nebraska Tractor Test 1036 file
PTO performance
Power at rated engine speed
100.21 hp 74.7 kW
Fuel use
6.4 gal/hour 24.2 l/hour
Power at rated PTO speed
98.74 hp 73.6 kW
Fuel use
6.2 gal/hour 23.5 l/hour
Drawbar performance
Max power
82.12 hp 61.2 kW
Fuel use
6.4 gal/hour 24.2 l/hour
Gear 2-High used for power test.
Max pull
10912 lbs 4949 kg
Gear 1-Med used for pull test.
Nebraska Tractor Test 1066

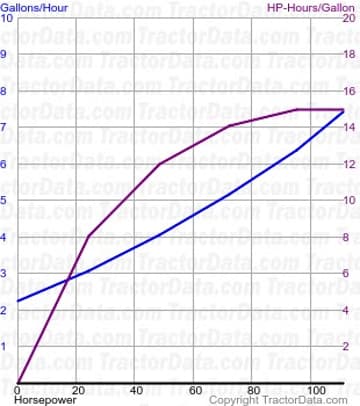

1070 fuel use from test 1066
1070 fuel use from test 1066
1070 fuel use from test 1066
1070 fuel use from test 1066
Nebraska Tractor Test 1066
Diesel (2100 rpm) 12-speed 2WD May 7 - 21, 1971 Link: Nebraska Tractor Test 1066 file
PTO performance
Power at rated engine speed
108.10 hp 80.6 kW
Fuel use
7.2 gal/hour 27.3 l/hour
Power at rated PTO speed
99.92 hp 74.5 kW
Fuel use
6.5 gal/hour 24.6 l/hour
Drawbar performance
Max power
90.99 hp 67.9 kW
Fuel use
7.2 gal/hour 27.3 l/hour
Gear 2-Medium used for power test.
Max pull
13780 lbs 6250 kg
Gear 1-Low used for pull test.
Nebraska Tractor Test 1067

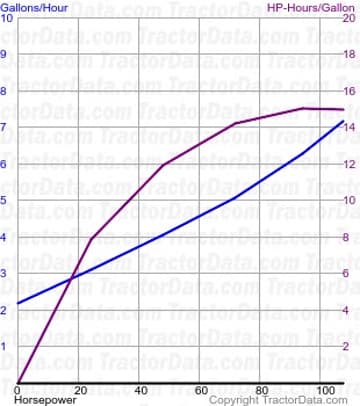

1070 fuel use from test 1067
1070 fuel use from test 1067
1070 fuel use from test 1067
1070 fuel use from test 1067
Nebraska Tractor Test 1067
Diesel 8-speed 2WD May 6 - 21, 1971 Link: Nebraska Tractor Test 1067 file
PTO performance
Power at rated engine speed
107.36 hp 80.1 kW
Fuel use
7.1 gal/hour 26.9 l/hour
Power at rated PTO speed
103.91 hp 77.5 kW
Fuel use
6.6 gal/hour 25.0 l/hour
Drawbar performance
Max power
90.77 hp 67.7 kW
Fuel use
7.0 gal/hour 26.5 l/hour
Gear 4-Low used for power test.
Max pull
13116 lbs 5949 kg
Gear 1-Low used for pull test.
