j i case 1270

J.I. Case 1270 tractor photo
1972 - 1978 Row-Crop tractor
1972 - 1978
Row-Crop tractor
1972 - 1978
Row-Crop tractor
1972 - 1978
Row-Crop tractor
Tractor Tests
NTTL 1103: diesel 12-speed 2WD
NTTL 1160: diesel 12-speed 2WD
Nebraska Tractor Test 1103

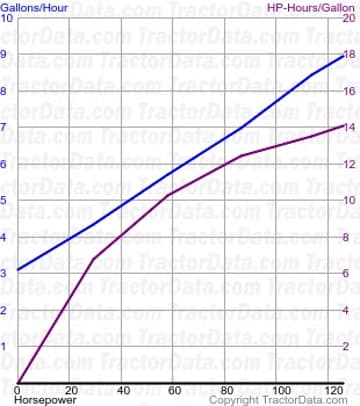

1270 fuel use from test 1103
1270 fuel use from test 1103
1270 fuel use from test 1103
1270 fuel use from test 1103
Nebraska Tractor Test 1103
Diesel 12-speed 2WD June 9 - 16, 1972 Link: Nebraska Tractor Test 1103 file
PTO performance
Power at rated engine speed
126.70 hp 94.5 kW
Fuel use
8.9 gal/hour 33.7 l/hour
Power at rated PTO speed
126.60 hp 94.4 kW
Fuel use
8.7 gal/hour 32.9 l/hour
Drawbar performance
Max power
108.45 hp 80.9 kW
Fuel use
8.9 gal/hour 33.7 l/hour
Gear 3-Lo used for power test.
Max pull
12,690 lbs 5756 kg
Gear 1-Hi used for pull test.
Nebraska Tractor Test 1160

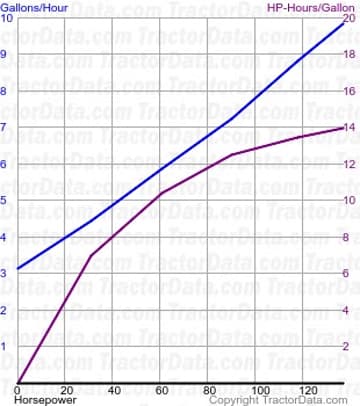

1270 fuel use from test 1160
1270 fuel use from test 1160
1270 fuel use from test 1160
1270 fuel use from test 1160
Nebraska Tractor Test 1160
Diesel 12-speed 2WD June 3 - 11, 1974 Link: Nebraska Tractor Test 1160 file
PTO performance
Power at rated engine speed
135.39 hp 101.0 kW
Fuel use
9.8 gal/hour 37.1 l/hour
Power at rated PTO speed
135.41 hp 101.0 kW
Fuel use
9.5 gal/hour 36.0 l/hour
Drawbar performance
Max power
116.77 hp 87.1 kW
Fuel use
9.6 gal/hour 36.3 l/hour
Gear 3-Lo used for power test.
Max pull
15,648 lbs 7097 kg
Gear 1-Int used for pull test.
