j i case 1370
 | 1971 - 1978 | 1971 - 1978 |
|---|---|---|
1971 - 1978 | ||
1971 - 1978 |
|---|
Tractor Tests | |
|---|---|
NTTL 1102: diesel (2100 rpm) 12-speed 2WD | |
NTTL 1148: diesel (2200 rpm) 12-speed 2WD |

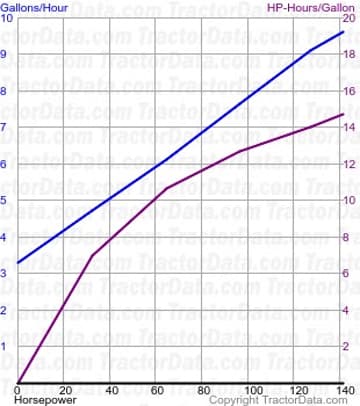

Nebraska Tractor Test 1102 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 1102 | |
|---|---|
Diesel (2100 rpm) 12-speed 2WD
June 10 - 19, 1972
Link: Nebraska Tractor Test 1102 file | |
PTO performance | |
Power at rated engine speed | 142.51 hp
106.3 kW |
Fuel use | 9.6 gal/hour
36.3 l/hour |
Power at rated PTO speed | 143.64 hp
107.1 kW |
Fuel use | 9.3 gal/hour
35.2 l/hour |
Drawbar performance | |
Max power | 120.97 hp
90.2 kW |
Fuel use | 9.5 gal/hour
36.0 l/hour |
Gear 3-Lo used for power test. | |
Max pull | 16,609 lbs
7533 kg |
Gear 1-Int used for pull test. | |

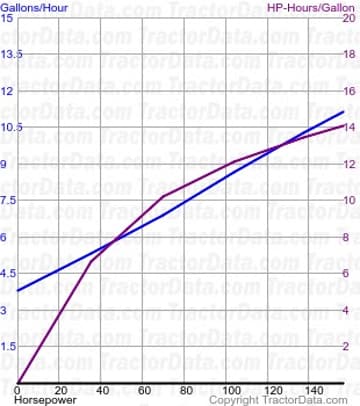

Nebraska Tractor Test 1148 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 1148 | |
|---|---|
Diesel (2200 rpm) 12-speed 2WD
October 31 - November 7, 1973
Link: Nebraska Tractor Test 1148 file | |
PTO performance | |
Power at rated engine speed | 155.56 hp
116.0 kW |
Fuel use | 11.1 gal/hour
42.0 l/hour |
Power at rated PTO speed | 156.32 hp
116.6 kW |
Fuel use | 10.4 gal/hour
39.4 l/hour |
Drawbar performance | |
Max power | 130.9 hp
97.6 kW |
Fuel use | 10.9 gal/hour
41.3 l/hour |
Gear 3-Lo used for power test. | |
Max pull | 16,480 lbs
7475 kg |
Gear 1-Int used for pull test. | |
