j i case 1690

J.I. Case 1690 tractor photo
1980 - 1983 90 SeriesUtility tractor
1980 - 1983
90 Series
Utility tractor
1980 - 1983
90 Series
Utility tractor
1980 - 1983
90 Series
Utility tractor
Nebraska Tractor Test 1383

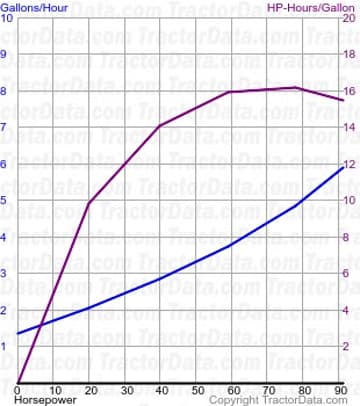

1690 fuel use from test 1383
1690 fuel use from test 1383
1690 fuel use from test 1383
1690 fuel use from test 1383
Nebraska Tractor Test 1383
Diesel 12-speed synchro 4WD March 27 - April 21, 1981 Link: Nebraska Tractor Test 1383 file
PTO performance
Power at rated engine speed
90.39 hp 67.4 kW
Fuel use
5.8 gal/hour 22.0 l/hour
Power at rated PTO speed
87.76 hp 65.4 kW
Fuel use
5.5 gal/hour 20.8 l/hour
Drawbar performance
Max power
72.55 hp 54.1 kW
Fuel use
5.5 gal/hour 20.8 l/hour
Gear 3-2 used for power test.
Max pull
10536 lbs 4779 kg
Gear 3-1 used for pull test.
