j i case 2090
 | 1979 - 1983
90 SeriesRow-Crop tractor | 1979 - 1983 | 90 Series | Row-Crop tractor |
|---|---|---|---|---|
1979 - 1983 | ||||
90 Series | ||||
Row-Crop tractor | ||||
1979 - 1983 | |
|---|---|
90 Series | |
Row-Crop tractor |
Tractor Tests | |
|---|---|
NTTL 1295: diesel 12-speed 2WD | |
NTTL 1304: diesel 8-speed 2WD |

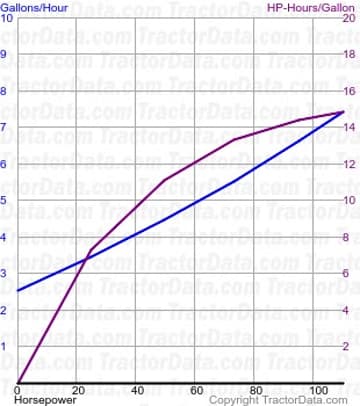

Nebraska Tractor Test 1295 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 1295 | |
|---|---|
Diesel 12-speed 2WD
November 6 - 13, 1978
Link: Nebraska Tractor Test 1295 file | |
PTO performance | |
Power at rated engine speed | 108.29 hp
80.8 kW |
Fuel use | 7.2 gal/hour
27.3 l/hour |
Drawbar performance | |
Max power | 89.40 hp
66.7 kW |
Fuel use | 7.2 gal/hour
27.3 l/hour |
Gear 3I used for power test. | |
Max pull | 11211 lbs
5085 kg |
Gear 2L used for pull test. | |

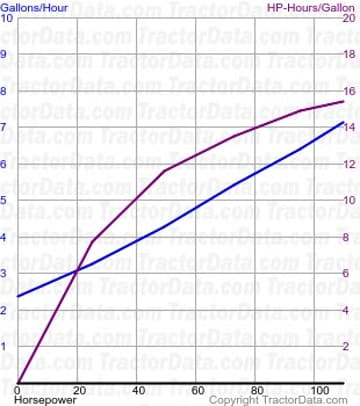

Nebraska Tractor Test 1304 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 1304 | |
|---|---|
Diesel 8-speed 2WD
April 11 - 21, 1979
Link: Nebraska Tractor Test 1304 file | |
PTO performance | |
Power at rated engine speed | 108.74 hp
81.1 kW |
Fuel use | 7.1 gal/hour
26.9 l/hour |
Drawbar performance | |
Max power | 93.17 hp
69.5 kW |
Fuel use | 6.9 gal/hour
26.1 l/hour |
Gear 3L used for power test. | |
Max pull | 11655 lbs
5286 kg |
Gear 1H used for pull test. | |
