j i case 600
 | 1957
600 SeriesStandard-tread tractor | 1957 | 600 Series | Standard-tread tractor |
|---|---|---|---|---|
1957 | ||||
600 Series | ||||
Standard-tread tractor | ||||
1957 | |
|---|---|
600 Series | |
Standard-tread tractor |
Production | |
|---|---|
Manufacturer | J.I. Case |
Standard-tread tractor | |
Built in Racine, Wisconsin, USA | |
Total built | 1,515 |
Variants | |
|---|---|
600 | diesel |
610 | LP-gas |
620 | industrial |

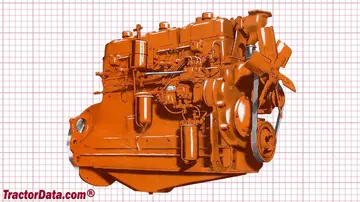

J.I. Case 600 Engine | |
|---|---|
J.I. Case 6.2L 6-cyl diesel | |
Engine details ...  |
J.I. Case 600 Transmission | |
|---|---|
6-speed gear | |
Transmission details ...  |
J.I. Case 600 Power | |
|---|---|
Belt (claimed) | 70 hp
52.2 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | power assist |
Disc brakes | |
Open operator station. | |

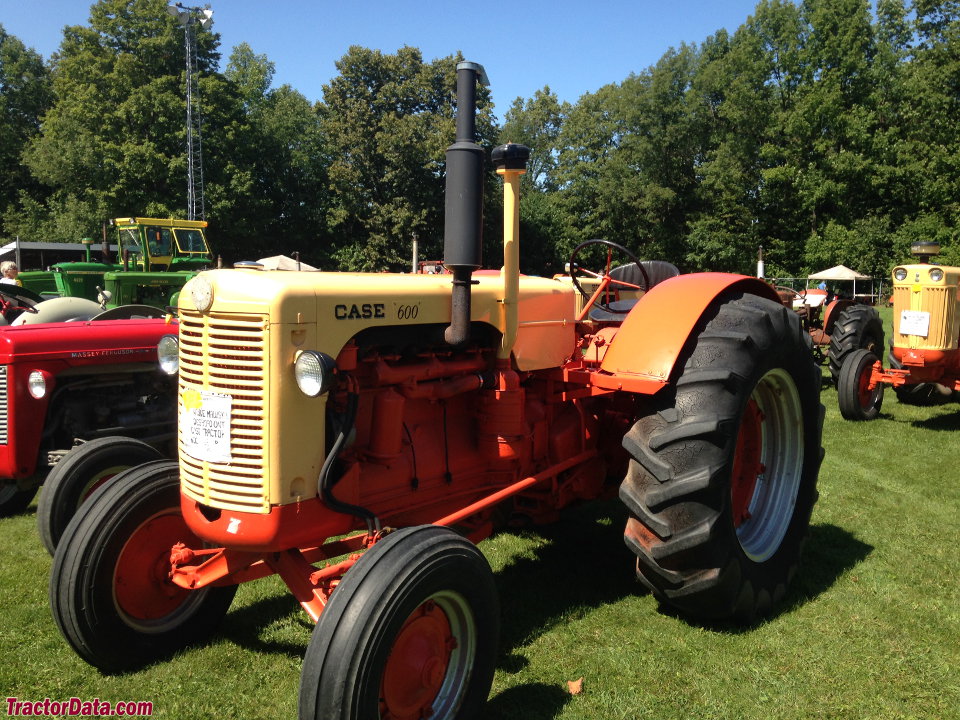

Photos | |
|---|---|
 | |
J.I. Case 600 photos...  |
Capacity | |
|---|---|
Fuel | 30 gal
113.6 L |
Hydraulic system | 3.5 gal
13.2 L |
Hydraulics | |
|---|---|
Type | open center OptOptional |
Capacity | 3.5 gal
13.2 L |
Pressure | 1000 psi
69.0 bar |
Pump flow | 15 gpm
56.8 lpm |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent OptOptional |
Clutch | mechanical wet disc |
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@1475 |
Dimensions & Tires | |
|---|---|
Wheelbase | 87.3 inches
221 cm |
Weight | 7500 lbs
3402 kg |
Front tire | 7.50-18 |
Rear tire | 15-34 |
Full dimensions and tires ...  | |
Belt Pulley | |
|---|---|
Diameter | 13.5 inches
34 cm |
Width | 8.25 inches
20 cm |
RPM | 944 |
Speed | 3338 ft/min
1017.42 meters/min |
Electrical | |
|---|---|
Ground | negative |
Charging system | generator |
Charging amps | 12 |
Batteries | 2 |
Battery volts | 6 |
References | |
|---|---|
 | |
600 Tractors - Diesel and LP-Gas published in 1956, by J.I. Case | |
Operator's Instruction Manual 600 Series Diesel Tractors (6425) published in 1956 |
