j i case 600
 | 1957
600 SeriesStandard-tread tractor | 1957 | 600 Series | Standard-tread tractor |
|---|---|---|---|---|
1957 | ||||
600 Series | ||||
Standard-tread tractor | ||||
1957 | |
|---|---|
600 Series | |
Standard-tread tractor |
Engine Detail | |
|---|---|
J.I. Case | |
diesel | |
6-cylinder | |
liquid-cooled | |
Displacement | 377 ci
6.2 L |
Bore/Stroke | 4.00x5.00 inches
102 x 127 mm |
Air cleaner | oil bath |
Pre-heating | ether injection |
Compression | 15:1 |
Rated RPM | 1500 |
Idle RPM | 600-1635 |
Firing order | 1-5-3-6-2-4 |
Starter | electric |
Starter volts | 12 |
Coolant capacity | 56 qts
53.0 L |
Intake valve clearance | 0.012 inches (cold)
0.305 mm |
Exhaust valve clearance | 0.012 inches (cold)
0.305 mm |

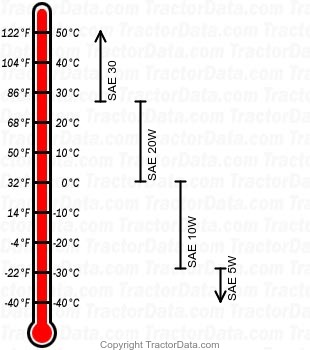

Engine Oil | |
|---|---|
 | |
Oil capacity | 14 qts
13.2 L |
J.I. Case 600 Engine | |
|---|---|
 |
