John Deere 1020
 | 1965 - 1973
New Generation SeriesUtility tractor |
|---|---|
1965 - 1973 | |
New Generation Series | |
Utility tractor | |
1965 - 1973 | |
|---|---|
New Generation Series | |
Utility tractor |
Transmission options | |
|---|---|
8-speed collar shift | |
16-speed two-speed power shift | |
8-speed power shuttle |
Transmission | |
|---|---|
Type | collar shift |
Gears | 8 forward and 4 reverse |
Clutch | dry disc |
Four gears (1-4) in two ranges (I/II) plus reverse (R) range. | |

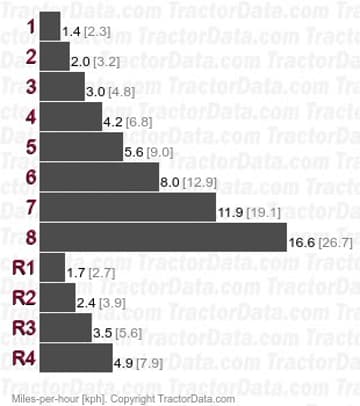

Speeds | |
|---|---|
 |

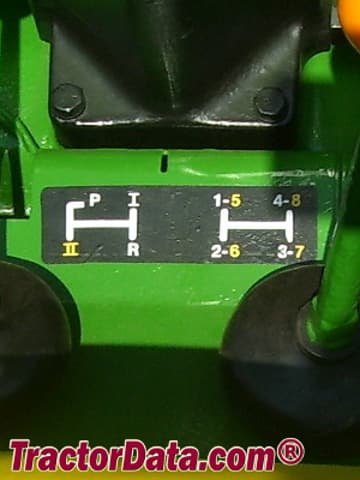

Shift Pattern | |
|---|---|
 |
Transmission | |
|---|---|
Type | two-speed power shift |
Gears | 16 forward and 8 reverse |
Clutch | dry disc |
Four gears (1-4) in two ranges (I/II) plus reverse (R) range. Left-hand power shift lever on dash. | |
Transmission | |
|---|---|
Type | power shuttle |
Gears | 8 forward and 4 reverse |
Four gears (1-4) in two ranges (I/II) with left-hand reverser lever. Reverse only available in low (I) range. | |
