john deere 1520

John Deere 1520 tractor photo
1968 - 1972 Utility tractor
1968 - 1972
Utility tractor
1968 - 1972
Utility tractor
1968 - 1972
Utility tractor
Tractor Tests
NTTL 991: diesel 16-speed 2WD
NTTL 1004: gasoline 16-speed 2WD
Nebraska Tractor Test 991

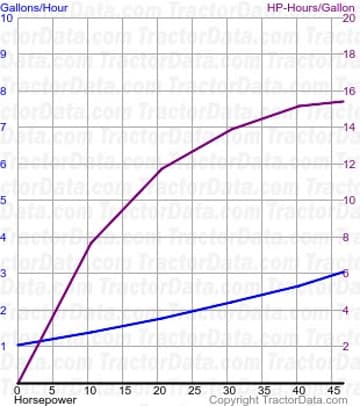

1520 fuel use from test 991
1520 fuel use from test 991
1520 fuel use from test 991
1520 fuel use from test 991
Nebraska Tractor Test 991
Diesel 16-speed 2WD October 14 - 22, 1968 Link: Nebraska Tractor Test 991 file
PTO performance
Power at rated engine speed
46.52 hp 34.7 kW
Fuel use
3.0 gal/hour 11.4 l/hour
Power at rated PTO speed
42.97 hp 32.0 kW
Fuel use
2.7 gal/hour 10.2 l/hour
Drawbar performance
Max power
38.48 hp 28.7 kW
Fuel use
3.1 gal/hour 11.7 l/hour
Gear 5-High used for power test.
Max pull
5,082 lbs 2305 kg
Gear 3-Low used for pull test.
Nebraska Tractor Test 1004

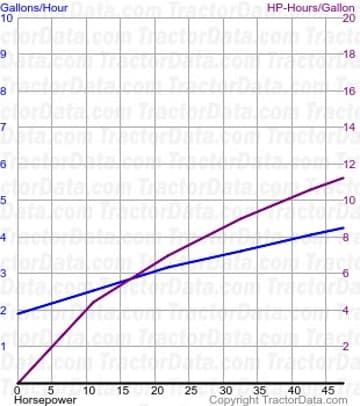

1520 fuel use from test 1004
1520 fuel use from test 1004
1520 fuel use from test 1004
1520 fuel use from test 1004
Nebraska Tractor Test 1004
Gasoline 16-speed 2WD March 28 - April 2, 1969 Link: Nebraska Tractor Test 1004 file
PTO performance
Power at rated engine speed
47.86 hp 35.7 kW
Fuel use
4.3 gal/hour 16.3 l/hour
Power at rated PTO speed
43.95 hp 32.8 kW
Fuel use
4.0 gal/hour 15.1 l/hour
Drawbar performance
Max power
37.24 hp 27.8 kW
Fuel use
4.1 gal/hour 15.5 l/hour
Gear 5-High used for power test.
Max pull
5,467 lbs 2479 kg
Gear 3-Low used for pull test.
