john deere lawn tractors f930

1984 - 1989
F900 Series
Front-mount mower

Engine Detail
Onan P224
gasoline
2-cylinder
air-cooled horizontal-shaft opposed twin
Displacement	983 cc 60 ci
Bore/Stroke	3.56x3.00 inches 90 x 76 mm
Power	24 hp 17.9 kW
Air cleaner	dry
Torque	41 lb-ft 55.6 Nm
Torque RPM	2400
Starter	electric
Starter volts	12
Oil capacity	3 qts 2.8 L

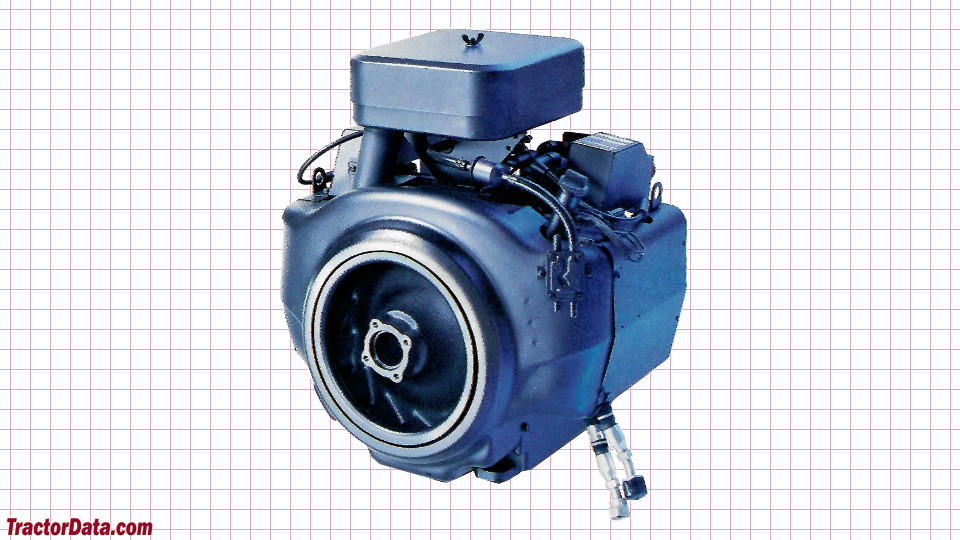

John Deere F930 Engine
