john deere lawn tractors la115
 | 2008 - 2010
LA105 SeriesLawn tractor | 2008 - 2010 | LA105 Series | Lawn tractor |
|---|---|---|---|---|
2008 - 2010 | ||||
LA105 Series | ||||
Lawn tractor | ||||
2008 - 2010 | |
|---|---|
LA105 Series | |
Lawn tractor |
Engine Detail | |
|---|---|
Briggs & Stratton 31 | |
gasoline | |
1-cylinder | |
air-cooled vertical-shaft | |
Displacement | 499 cc
30.5 ci |
Bore/Stroke | 3.57x3.06 inches
91 x 78 mm |
Power (gross) | 19.5 hp
14.5 kW |
Air cleaner | paper and foam elements |
Starter volts | 12 |
Sparkplug gap | 0.030 inches
0.762 mm |
Intake valve clearance | 0.004 inches
0.102 mm |
Exhaust valve clearance | 0.006 inches
0.152 mm |

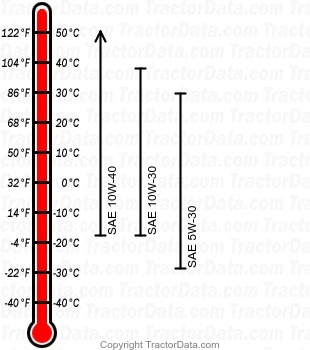

Engine Oil | |
|---|---|
 | |
Oil capacity | 1.5 qts
1.4 L |

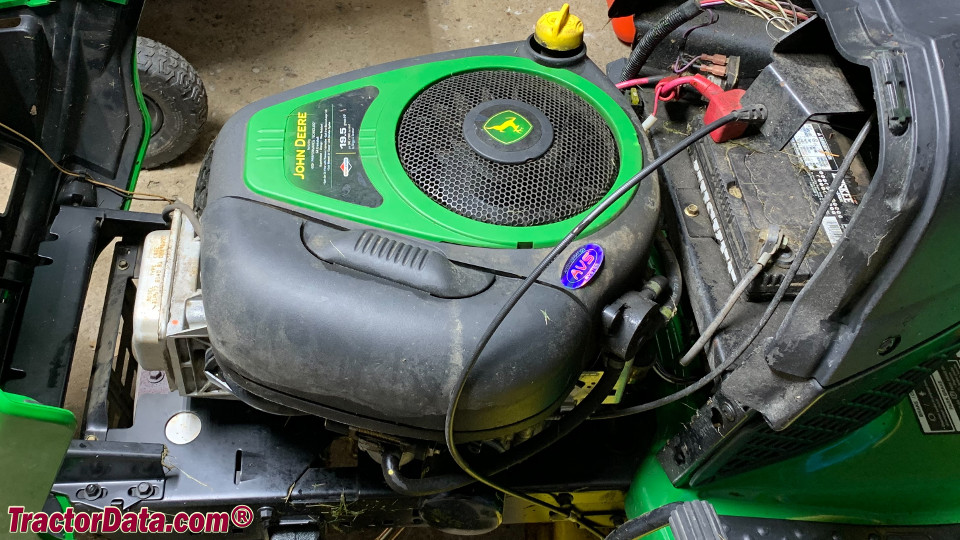

John Deere LA115 Engine | |
|---|---|
 | |
Image courtesy of Greg Savernik |
