john deere lawn tractors lt150
 | 2002 - 2005
LT SeriesLawn tractor | 2002 - 2005 | LT Series | Lawn tractor |
|---|---|---|---|---|
2002 - 2005 | ||||
LT Series | ||||
Lawn tractor | ||||
2002 - 2005 | |
|---|---|
LT Series | |
Lawn tractor |
Engine Detail | |
|---|---|
Kohler Command CV426S | |
gasoline | |
1-cylinder | |
air-cooled vertical-shaft | |
Original engine. The CV426S was used during the 2002 model year. | |
Displacement | 426 cc
26 ci |
Bore/Stroke | 3.54x2.64 inches
90 x 67 mm |
Power (gross) | 15 hp
11.2 kW |
Starter volts | 12 |
Sparkplug gap | 0.040 inches
1.016 mm |

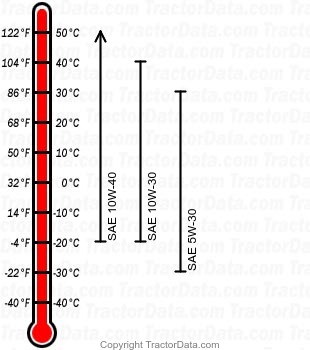

Engine Oil | |
|---|---|
 | |
Oil capacity | 2 qts
1.9 L |
Oil change | 100 h |
Engine Detail | |
|---|---|
Kohler CV15S | |
gasoline | |
1-cylinder | |
air-cooled vertical-shaft | |
The CV-15S was introduced on the Deere LT150 in the 2003 model year, tractor serial number 35001. | |
Displacement | 426 cc
26 ci |
Power (gross) | 15 hp
11.2 kW |
Air cleaner | paper and foam |
Idle RPM | 1650-3350 |
Engine Oil | |
|---|---|
 | |
Oil change | 100 h |

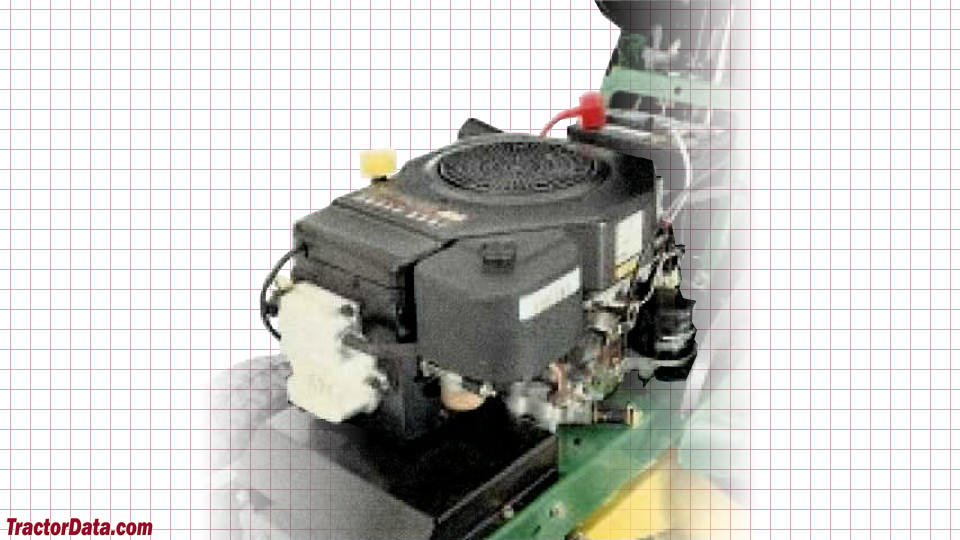

John Deere LT150 Engine | |
|---|---|
 |
