john deere lawn tractors lx172
 | 1991 - 1997
LX 100 SeriesLawn tractor | 1991 - 1997 | LX 100 Series | Lawn tractor |
|---|---|---|---|---|
1991 - 1997 | ||||
LX 100 Series | ||||
Lawn tractor | ||||
1991 - 1997 | |
|---|---|
LX 100 Series | |
Lawn tractor |
Transmission | |
|---|---|
Transmission | Peerless 801 |
Type | belt-driven gear |
Gears | 5 forward and 1 reverse |
Oil capacity | 1.1 qts
1.0 L |
Oil change | fill as needed |

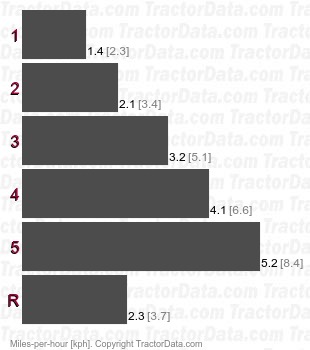

Speeds | |
|---|---|
 |

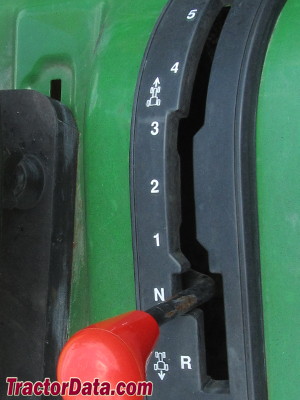

Shift Pattern | |
|---|---|
 |

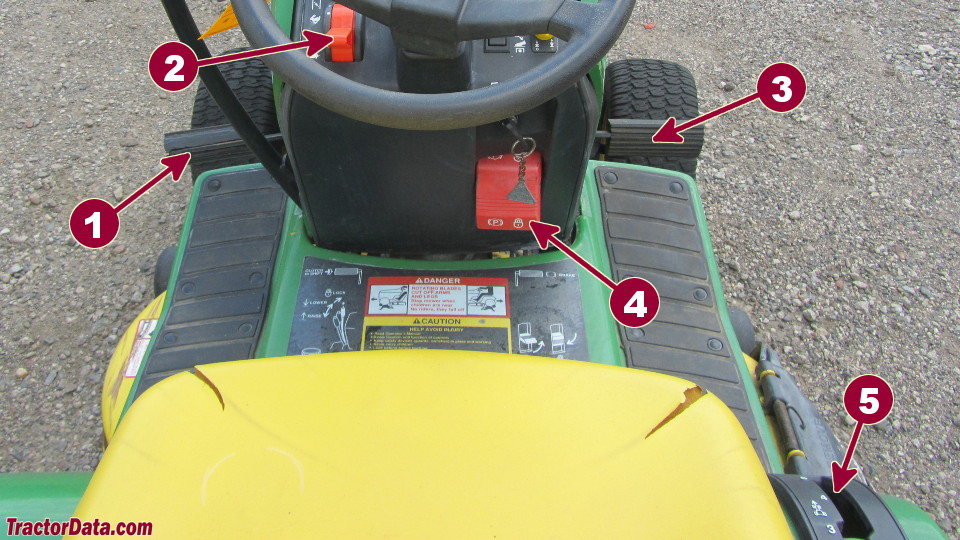

LX172 Transmission Controls | |
|---|---|
 | |
1 | Clutch |
2 | Throttle |
3 | Brake |
4 | Parking brake |
5 | Gear shift |
