long 610
 | 1979 - 1990
Utility tractorUTB/Universal built | 1979 - 1990 | Utility tractor | UTB/Universal built |
|---|---|---|---|---|
1979 - 1990 | ||||
Utility tractor | ||||
UTB/Universal built | ||||
1979 - 1990 | |
|---|---|
Utility tractor | |
UTB/Universal built |
Transmission | |
|---|---|
Type | partially synchornized |
Gears | 8 forward and 2 reverse |
Clutch | 279.4mm dry disc |
Oil capacity | 17 qts
16.1 L |
Four gears, plus reverse, in two ranges. Gears 3/4 are synchronized. | |

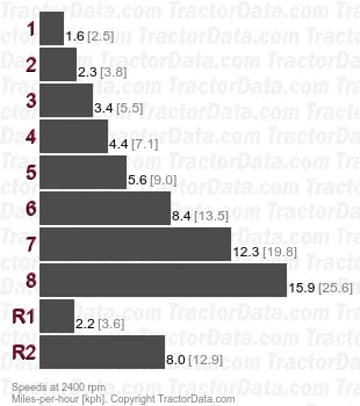

Speeds | |
|---|---|
With 16.9-28 rear tires. | |
 |
