massey ferguson 1100
 | 1964 - 1972
1000 SeriesRow-Crop tractor | 1964 - 1972 | 1000 Series | Row-Crop tractor |
|---|---|---|---|---|
1964 - 1972 | ||||
1000 Series | ||||
Row-Crop tractor | ||||
1964 - 1972 | |
|---|---|
1000 Series | |
Row-Crop tractor |
Tractor Tests | |
|---|---|
NTTL 923: diesel 12-speed 2WD | |
NTTL 963: gasoline 12-speed 2WD |

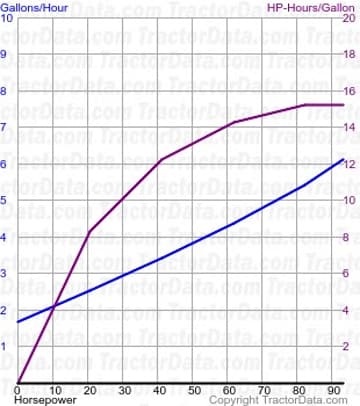

Nebraska Tractor Test 923 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 923 | |
|---|---|
Diesel 12-speed 2WD
October 27 - November 1, 1965
Link: Nebraska Tractor Test 923 file | |
PTO performance | |
Power at rated engine speed | 93.94 hp
70.1 kW |
Fuel use | 6.1 gal/hour
23.1 l/hour |
Power at rated PTO speed | 88.74 hp
66.2 kW |
Fuel use | 5.6 gal/hour
21.2 l/hour |
Drawbar performance | |
Max power | 84.61 hp
63.1 kW |
Fuel use | 6.2 gal/hour
23.5 l/hour |
Gear 5 used for power test. | |
Max pull | 11122 lbs
5044 kg |
Gear 1L HP-High used for pull test. | |

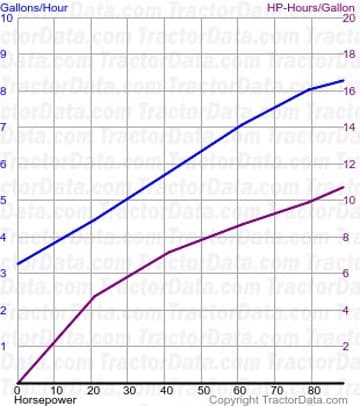

Nebraska Tractor Test 963 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 963 | |
|---|---|
Gasoline 12-speed 2WD
June 17 - July 6, 1967
Link: Nebraska Tractor Test 963 file | |
PTO performance | |
Power at rated engine speed | 90.29 hp
67.3 kW |
Fuel use | 8.3 gal/hour
31.4 l/hour |
Power at rated PTO speed | 83.62 hp
62.4 kW |
Fuel use | 7.6 gal/hour
28.8 l/hour |
Drawbar performance | |
Max power | 73.92 hp
55.1 kW |
Fuel use | 8.3 gal/hour
31.4 l/hour |
Gear 5 used for power test. | |
Max pull | 10184 lbs
4619 kg |
Gear 1L HP-High used for pull test. | |
