mccormick deering w 4

McCormick-Deering W-4 tractor photo
1939 - 1952 Standard-tread tractor
1939 - 1952
Standard-tread tractor
1939 - 1952
Standard-tread tractor
1939 - 1952
Standard-tread tractor
Engine options
International Harvester 2.5L 4-cyl distillate
International Harvester 2.5L 4-cyl gasoline
Engine Detail
International Harvester
distillate
4-cylinder
liquid-cooled vertical I-head
Displacement
152.1 ci 2.5 L
Bore/Stroke
3.375x4.25 inches 86 x 108 mm
Air cleaner
oil bath
Compression
4.75:1
Rated RPM
1650
Idle RPM
400-1815
Firing order
1-3-4-2
Starter volts
6
Coolant capacity
18 qts 17.0 L
Sparkplug gap
0.023 inches 0.584 mm
Intake valve clearance
0.017 inches (hot) 0.432 mm
Exhaust valve clearance
0.017 inches (hot) 0.432 mm
Engine Oil

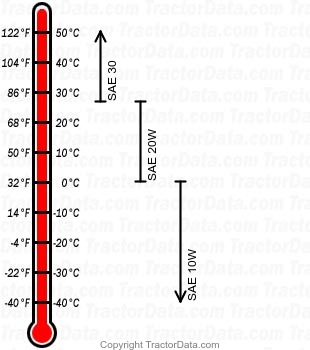

W-4 distillate engine oil chart
Oil capacity
6 qts 5.7 L
McCormick-Deering W-4 Engine
McCormick-Deering W-4 engine image
Engine Detail
International Harvester
gasoline
4-cylinder
liquid-cooled vertical I-head
Displacement
152.1 ci 2.5 L
Bore/Stroke
3.375x4.25 inches 86 x 108 mm
Air cleaner
oil bath
Compression
5.9:1
Rated RPM
1650
Idle RPM
400-1815
Firing order
1-3-4-2
Starter volts
6
Coolant capacity
18 qts 17.0 L
Sparkplug gap
0.023 inches 0.584 mm
Intake valve clearance
0.017 inches (hot) 0.432 mm
Exhaust valve clearance
0.017 inches (hot) 0.432 mm
Engine Oil
W-4 gasoline engine oil chart
Oil capacity
6 qts 5.7 L
