mccormick intl cx105

McCormick Intl CX105 tractor photo
2003 - 2007 CX SeriesUtility tractor
2003 - 2007
CX Series
Utility tractor
2003 - 2007
CX Series
Utility tractor
2003 - 2007
CX Series
Utility tractor
Transmission options
24-speed partial power shift
8-speed synchro shuttle
16-speed partial power shift
Transmission
Transmission
Xtrashift
Type
partial power shift
Gears
24 forward and reverse
Clutch
wet disc
Eight gears with a three-range power shift for each gear. Optional creeper provides 36 gears forward and reverse.
Speeds
CX105 Xtrashift partial power shift speeds
Transmission
Type
synchro shuttle
Gears
8 forward and reverse
Clutch
dry disc
Speeds
With 18.4-34 rear tires.

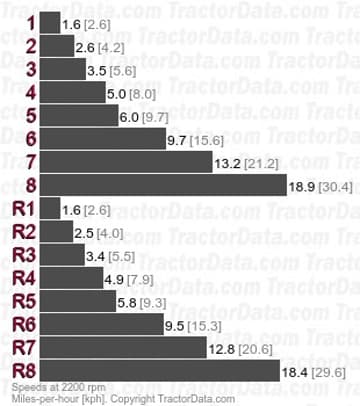

CX105  synchro shuttle speeds
Transmission
Type
partial power shift
Gears
16 forward and 8 reverse
Clutch
dry disc
Four gears in two ranges with two-speed power shift.
