Minneapolis-Moline A4T-1600 - Specifications & Details

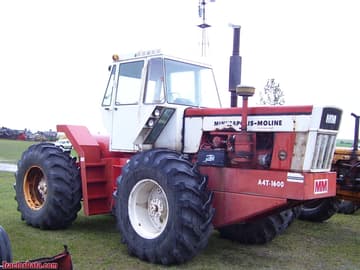

Minneapolis-Moline A4T-1600

	1970 - 1972 Four-wheel Drive (4WD) tractor
1970 - 1972
Four-wheel Drive (4WD) tractor

1970 - 1972
Four-wheel Drive (4WD) tractor

1970 - 1972
Four-wheel Drive (4WD) tractor

Variants
A4T-1600	similar Minneapolis-Moline model
2655	similar Oliver model

Minneapolis-Moline A4T-1600 Engines
Minneapolis-Moline 9.6L 6-cyl diesel
Minneapolis-Moline 8.3L 6-cyl LP gas
Engine details ...

Minneapolis-Moline A4T-1600 Transmission

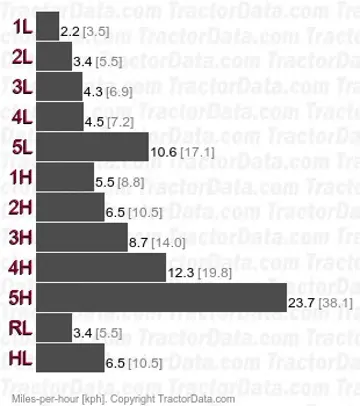

10-speed
Transmission details ...

Minneapolis-Moline A4T-1600 Power
Engine	169 hp 126.0 kW
Drawbar (claimed)	123 hp 91.7 kW
PTO (claimed)	143 hp 106.6 kW
Drawbar (tested)	123.3 hp 91.9 kW
PTO (tested)	143.27 hp 106.8 kW
Performance test details ...

Mechanical
Four-wheel drive
Steering	hydrostatic power
Hydraulic dry disc brakes
Open operator station. Cab optional with heat.

Photos

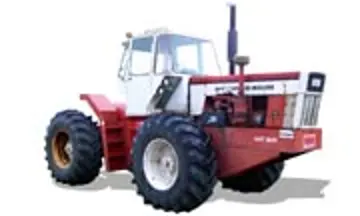

Minneapolis-Moline A4T-1600 photos...

Capacity
Diesel Fuel	100 gal 378.5 L
LP-gas Fuel	88 gal 333.1 L
Hydraulic system	8 gal 30.3 L

Hydraulics
Type	open center
	closed center OptOptional
Capacity	8 gal 30.3 L
Pressure	1750 psi (open) 120.7 bar
	2000 psi (closed) 137.9 bar
Valves	2 or 3
Pump flow	17 gpm (open) 64.3 lpm
	20 gpm (closed) 75.7 lpm

Tractor hitch
Rear Type	III/II

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000
Engine RPM	1000@1800

Dimensions & Tires
Wheelbase	120 inches 304 cm
Weight	19850 lbs 9003 kg
Front tire	18.4-34
Rear tire	18.4-34
Full dimensions and tires ...

A4T-1600 Serial Numbers
1970	45600001
1971	45600188
1972	45600701
Final	45601190
1970	45700001 (LP-gas)
1971	45700127 (LP-gas)
1972	45700198 (LP-gas)
Final	45700257 (LP-gas)
FAQ: How to read a serial number table.

References

A4T Plainsman published in 1970, by White
