minneapolis moline a4t 1600

Minneapolis-Moline A4T-1600 tractor photo
1970 - 1972 Four-wheel Drive (4WD) tractor
1970 - 1972
Four-wheel Drive (4WD) tractor
1970 - 1972
Four-wheel Drive (4WD) tractor
1970 - 1972
Four-wheel Drive (4WD) tractor
Nebraska Tractor Test 1070

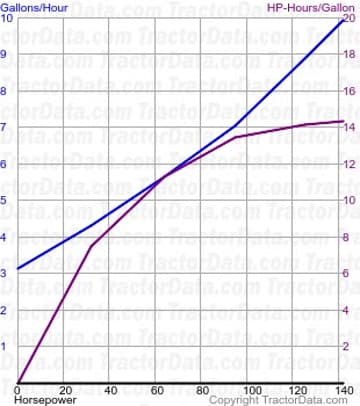

A4T-1600 fuel use from test 1070
A4T-1600 fuel use from test 1070
A4T-1600 fuel use from test 1070
A4T-1600 fuel use from test 1070
Nebraska Tractor Test 1070
Diesel 10-speed 4WD May 24 - June 4, 1971 Link: Nebraska Tractor Test 1070 file
PTO performance
Power at rated engine speed
143.27 hp 106.8 kW
Fuel use
10.1 gal/hour 38.2 l/hour
Power at rated PTO speed
125.38 hp 93.5 kW
Fuel use
8.9 gal/hour 33.7 l/hour
Drawbar performance
Max power
123.3 hp 91.9 kW
Fuel use
9.8 gal/hour 37.1 l/hour
Gear 3L used for power test.
Max pull
18,236 lbs 8271 kg
Gear 1L used for pull test.
