minneapolis moline g705

Minneapolis-Moline G705 tractor photo
1962 - 1965 Standard-tread tractor
1962 - 1965
Standard-tread tractor
1962 - 1965
Standard-tread tractor
1962 - 1965
Standard-tread tractor
Tractor Tests
NTTL 835: diesel 5-speed 2WD
NTTL 836: LP gas 5-speed 2WD
Nebraska Tractor Test 835

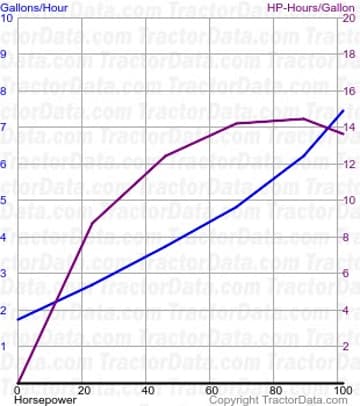

G705 fuel use from test 835
G705 fuel use from test 835
G705 fuel use from test 835
G705 fuel use from test 835
Nebraska Tractor Test 835
Diesel 5-speed 2WD April 19 - 30, 1963 Link: Nebraska Tractor Test 835 file
PTO performance
Power at rated engine speed
101.01 hp 75.3 kW
Fuel use
7.4 gal/hour 28.0 l/hour
Power at rated PTO speed
81.47 hp 60.8 kW
Fuel use
5.7 gal/hour 21.6 l/hour
Drawbar performance
Max power
90.80 hp 67.7 kW
Fuel use
7.4 gal/hour 28.0 l/hour
Gear 3 used for power test.
Max pull
11,345 lbs 5146 kg
Gear 1 used for pull test.
Nebraska Tractor Test 836

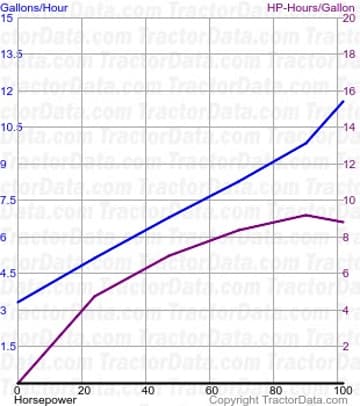

G705 fuel use from test 836
G705 fuel use from test 836
G705 fuel use from test 836
G705 fuel use from test 836
Nebraska Tractor Test 836
LP gas 5-speed 2WD April 24 - May 1, 1963 Link: Nebraska Tractor Test 836 file
PTO performance
Power at rated engine speed
101.05 hp 75.4 kW
Fuel use
11.5 gal/hour 43.5 l/hour
Power at rated PTO speed
82.12 hp 61.2 kW
Fuel use
9.0 gal/hour 34.1 l/hour
Drawbar performance
Max power
90.08 hp 67.2 kW
Fuel use
11.4 gal/hour 43.1 l/hour
Gear 3 used for power test.
Max pull
11,432 lbs 5185 kg
Gear 1 used for pull test.
