minneapolis moline g750

Minneapolis-Moline G750 tractor photo
1969 - 1975 Row-Crop tractor
1969 - 1975
Row-Crop tractor
1969 - 1975
Row-Crop tractor
1969 - 1975
Row-Crop tractor

Series map: G750G85077.8hp*95.6hp**Estimated engine power for comparison only.

Note: the Minneapolis-Moline model G750 is the same as the Oliver 1655. The following data is from the 1655 listing.
Transmission options
18-speed partial power shift
6-speed helical gear
Transmission
Transmission
Hydraul-Shift
Type
partial power shift
Gears
18 forward and 6 reverse
Clutch
304.8mm dry disc
The Hydraul-Shift transmission allows a three-speed power shift between over, direct, and under drive for each gear.
Speeds
With 16.9-38 rear tires.

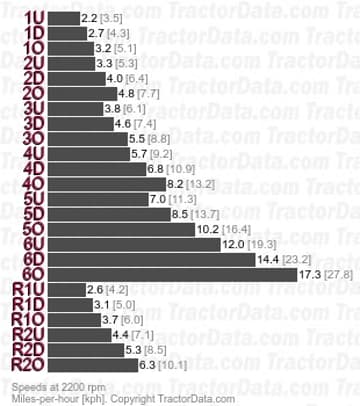

G750 Hydraul-Shift partial power shift speeds
Transmission
Type
helical gear
Gears
6 forward and 2 reverse
Clutch
304.8mm dry disc
Oil capacity
32 qts 30.3 L
Speeds
With 16.9-38 rear tires.

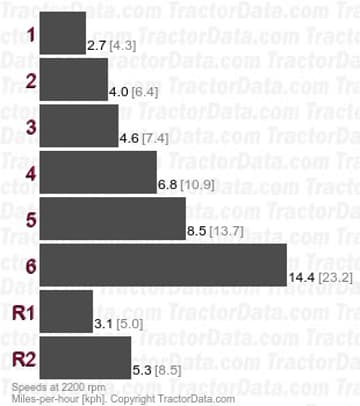

G750  helical gear speeds
