minneapolis moline g900

OverviewEngineTransmissionDimensionsTestsPhotos
Minneapolis-Moline G900 tractor photo
1967 - 1969 Row-Crop tractor
1967 - 1969
Row-Crop tractor
1967 - 1969
Row-Crop tractor
1967 - 1969
Row-Crop tractor
Tractor Tests
NTTL 978: diesel Ampli-Torc 2WD
NTTL 979: LP gas Ampli-Torc 2WD
NTTL 980: gasoline Ampli-Torc 2WD
Nebraska Tractor Test 978

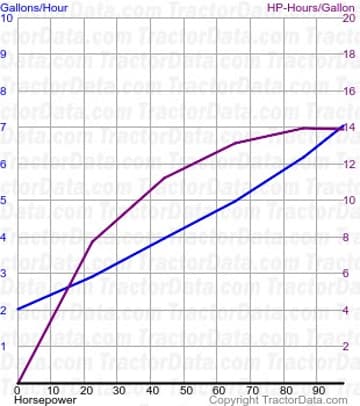

G900 fuel use from test 978
G900 fuel use from test 978
G900 fuel use from test 978
G900 fuel use from test 978
Nebraska Tractor Test 978
Diesel Ampli-Torc 2WD June 4 - 20, 1968 Link: Nebraska Tractor Test 978 file
PTO performance
Power at rated engine speed
97.78 hp 72.9 kW
Fuel use
7.0 gal/hour 26.5 l/hour
Drawbar performance
Max power
83.30 hp 62.1 kW
Fuel use
6.8 gal/hour 25.7 l/hour
Gear 2DD used for power test.
Max pull
11,954 lbs 5422 kg
Gear 1AT used for pull test.
Nebraska Tractor Test 979

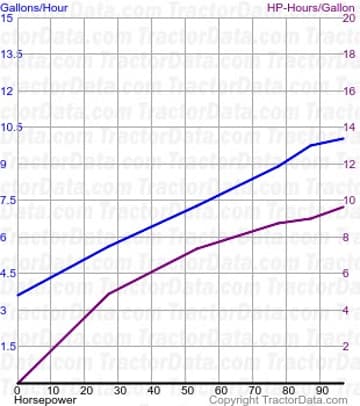

G900 fuel use from test 979
G900 fuel use from test 979
G900 fuel use from test 979
G900 fuel use from test 979
Nebraska Tractor Test 979
LP gas Ampli-Torc 2WD June 4 - 20, 1968 Link: Nebraska Tractor Test 979 file
PTO performance
Power at rated engine speed
97.57 hp 72.8 kW
Fuel use
10.0 gal/hour 37.9 l/hour
Drawbar performance
Max power
84.12 hp 62.7 kW
Fuel use
9.9 gal/hour 37.5 l/hour
Gear 2DD used for power test.
Max pull
12,006 lbs 5445 kg
Gear 1AT used for pull test.
Nebraska Tractor Test 980

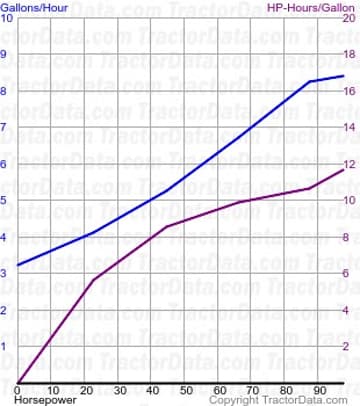

G900 fuel use from test 980
G900 fuel use from test 980
G900 fuel use from test 980
G900 fuel use from test 980
Nebraska Tractor Test 980
Gasoline Ampli-Torc 2WD June 11 - 20, 1968 Link: Nebraska Tractor Test 980 file
PTO performance
Power at rated engine speed
97.81 hp 72.9 kW
Fuel use
8.4 gal/hour 31.8 l/hour
Drawbar performance
Max power
87.88 hp 65.5 kW
Fuel use
8.4 gal/hour 31.8 l/hour
Gear 2DD used for power test.
Max pull
11,808 lbs 5356 kg
Gear 1AT used for pull test.
