new holland 5610
 | 1982 - 1993
Utility tractor | 1982 - 1993 | Utility tractor |
|---|---|---|---|
1982 - 1993 | |||
Utility tractor | |||
1982 - 1993 | |
|---|---|
Utility tractor |
Note: the New Holland model 5610 is the same as the Ford 5610. The following data is from the 5610 listing. |
|---|
Tractor Tests | |
|---|---|
NTTL 1428: diesel 16x4 4WD | |
NTTL 1429: diesel 16x8 2WD |

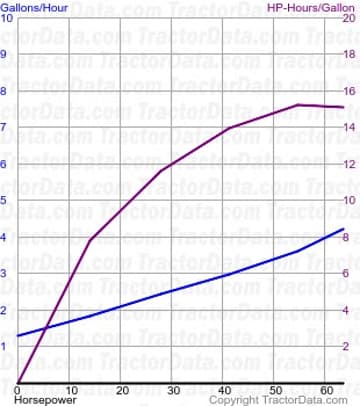

Nebraska Tractor Test 1428 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 1428 | |
|---|---|
Diesel 16x4 4WD
March 25 - April 19, 1982
Link: Nebraska Tractor Test 1428 file | |
PTO performance | |
Power at rated engine speed | 62.54 hp
46.6 kW |
Fuel use | 4.2 gal/hour
15.9 l/hour |
Power at rated PTO speed | 60.58 hp
45.2 kW |
Fuel use | 3.9 gal/hour
14.8 l/hour |
Drawbar performance | |
Max power | 53.43 hp
39.8 kW |
Fuel use | 4.2 gal/hour
15.9 l/hour |
Gear 6L used for power test. | |
Max pull | 7,408 lbs
3360 kg |
Gear 3L used for pull test. | |

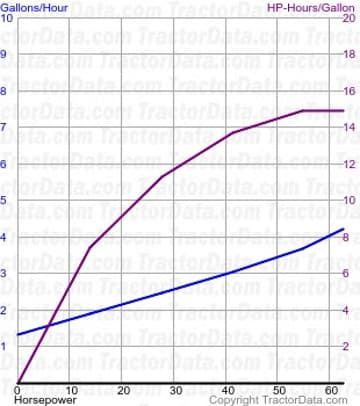

Nebraska Tractor Test 1429 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 1429 | |
|---|---|
Diesel 16x8 2WD
April 5 - May 6, 1982
Link: Nebraska Tractor Test 1429 file | |
PTO performance | |
Power at rated engine speed | 62.57 hp
46.7 kW |
Fuel use | 4.2 gal/hour
15.9 l/hour |
Power at rated PTO speed | 59.99 hp
44.7 kW |
Fuel use | 3.9 gal/hour
14.8 l/hour |
Drawbar performance | |
Max power | 52.98 hp
39.5 kW |
Fuel use | 4.1 gal/hour
15.5 l/hour |
Gear 6L used for power test. | |
Max pull | 7,578 lbs
3437 kg |
Gear 2H used for pull test. | |
