new holland 5640
 | 1996 - 1998
PowerStar 40 SeriesUtility tractor | 1996 - 1998 | PowerStar 40 Series | Utility tractor |
|---|---|---|---|---|
1996 - 1998 | ||||
PowerStar 40 Series | ||||
Utility tractor | ||||
1996 - 1998 | |
|---|---|
PowerStar 40 Series | |
Utility tractor |
Series map: TS90↑ 1999-20035640664078.7hp90.7hp5640↓ 1991-1995
Note: the New Holland model 5640 is the same as the Ford 5640. The following data is from the 5640 listing. |
|---|
Engine Detail | |
|---|---|
Ford Genesis | |
diesel | |
4-cylinder 8-valve | |
liquid-cooled | |
Displacement | 268 ci
4.4 L |
Bore/Stroke | 4.40x4.40 inches
112 x 112 mm |
Power (net) | 75 hp
55.9 kW |
Power (gross) | 78.7 hp
58.7 kW |
Air cleaner | dual paper elements |
Compression | 17.5:1 |
Rated RPM | 2200 |
Idle RPM | 725-2375 |
Torque | 289 lb-ft
391.9 Nm |
Torque RPM | 1400 |
Firing order | 1-3-4-2 |
Starter volts | 12 |
ROPS Coolant capacity | 15.3 qts
14.5 L |
Cab Coolant capacity | 16.9 qts
16.0 L |
Intake valve clearance | 0.016 inches*Cold
0.406 mm |
Exhaust valve clearance | 0.019 inches*Cold
0.483 mm |

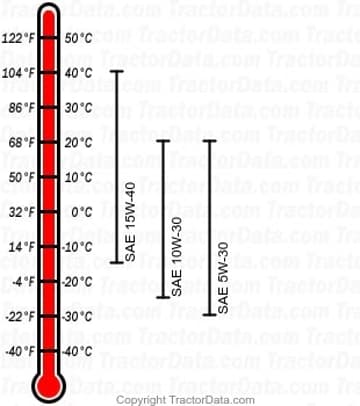

Engine Oil | |
|---|---|
 | |
Oil capacity | 12.1 qts
11.5 L |
