New Holland 6640
 | 1996 - 1998
PowerStar 40 SeriesUtility tractor |
|---|---|
1996 - 1998 | |
PowerStar 40 Series | |
Utility tractor | |
1996 - 1998 | |
|---|---|
PowerStar 40 Series | |
Utility tractor |
Series map: TS100↑ 1999-200356406640774078.7hp90.7hp100.3hp6640↓ 1991-1995
Note: the New Holland model 6640 is the same as the Ford 6640. The following data is from the 6640 listing. |
|---|
Engine Detail | |
|---|---|
Ford Genesis | |
diesel | |
4-cylinder 8-valve | |
liquid-cooled | |
Displacement | 304 ci
5.0 L |
Bore/Stroke | 4.40x5.00 inches
112 x 127 mm |
Power (net) | 85 hp
63.4 kW |
Power (gross) | 90.7 hp
67.6 kW |
Air cleaner | dual paper elements |
Compression | 17.5:1 |
Rated RPM | 2200 |
Idle RPM | 725-2375 |
Torque | 337 lb-ft
457.0 Nm |
Torque RPM | 1200 |
Firing order | 1-3-4-2 |
Starter volts | 12 |
Coolant capacity | 15.3 qts
14.5 L |
| 16.9 qts*With cab
16.0 L |
Intake valve clearance | 0.016 inches (cold)
0.406 mm |
Exhaust valve clearance | 0.019 inches (cold)
0.483 mm |

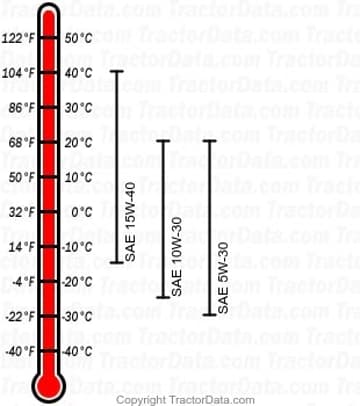

Engine Oil | |
|---|---|
 | |
Oil capacity | 12.1 qts
11.5 L |
