oliver 1600
 | 1962 - 1964
Model year 1962-19631963-1964
4-Digit SeriesRow-Crop tractor | 1962 - 1964 | Model year 1962-19631963-1964 | 4-Digit Series | Row-Crop tractor |
|---|---|---|---|---|---|
1962 - 1964 | |||||
Model year 1962-19631963-1964 | |||||
4-Digit Series | |||||
Row-Crop tractor | |||||
1962 - 1964 | |
|---|---|
Model year 1962-19631963-1964 | |
4-Digit Series | |
Row-Crop tractor |
Tractor Tests | |
|---|---|
NTTL 840: diesel 12-speed 2WD | |
NTTL 841: gasoline 12-speed 2WD |

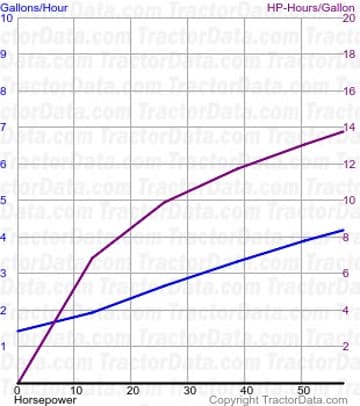

Nebraska Tractor Test 840 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 840 | |
|---|---|
Diesel 12-speed 2WD
May 29 - June 13, 1963
Link: Nebraska Tractor Test 840 file | |
PTO performance | |
Power at rated engine speed | 57.95 hp
43.2 kW |
Fuel use | 4.2 gal/hour
15.9 l/hour |
Power at rated PTO speed | 54.79 hp
40.9 kW |
Fuel use | 3.9 gal/hour
14.8 l/hour |
Drawbar performance | |
Max power | 46.90 hp
35.0 kW |
Fuel use | 4.0 gal/hour
15.1 l/hour |
Gear 4-HP used for power test. | |
Max pull | 8,401 lbs
3810 kg |
Gear 1-HP used for pull test. | |

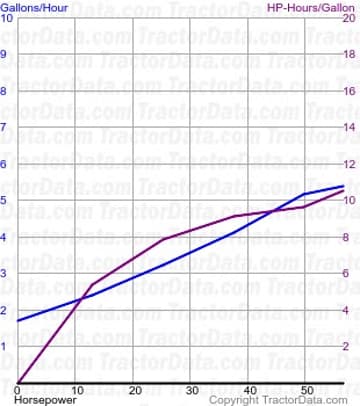

Nebraska Tractor Test 841 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 841 | |
|---|---|
Gasoline 12-speed 2WD
June 3 - 13, 1963
Link: Nebraska Tractor Test 841 file | |
PTO performance | |
Power at rated engine speed | 56.50 hp
42.1 kW |
Fuel use | 5.4 gal/hour
20.4 l/hour |
Power at rated PTO speed | 51.18 hp
38.2 kW |
Fuel use | 5.0 gal/hour
18.9 l/hour |
Drawbar performance | |
Max power | 47.09 hp
35.1 kW |
Fuel use | 5.2 gal/hour
19.7 l/hour |
Gear 4-HP used for power test. | |
Max pull | 8,490 lbs
3851 kg |
Gear 1-HP used for pull test. | |
