oliver 1850

OverviewEngineTransmissionDimensionsTestsAttachmentsPhotos
Oliver 1850 tractor photo
1964 - 1969 50 SeriesRow-Crop tractor
1964 - 1969
50 Series
Row-Crop tractor
1964 - 1969
50 Series
Row-Crop tractor
1964 - 1969
50 Series
Row-Crop tractor
Tractor Tests
NTTL 869: diesel 12-speed 4WD
NTTL 870: diesel 12-speed 2WD
NTTL 875: gasoline 12-speed 2WD
NTTL 876: gasoline 12-speed 4WD
Nebraska Tractor Test 869

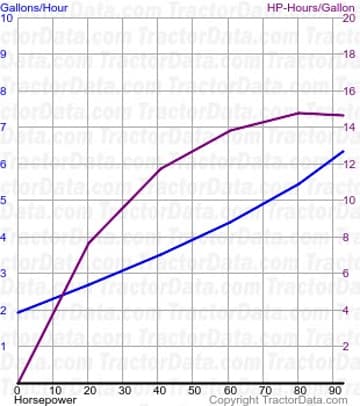

1850 fuel use from test 869
1850 fuel use from test 869
1850 fuel use from test 869
1850 fuel use from test 869
Nebraska Tractor Test 869
Diesel 12-speed 4WD October 26 - November 3, 1964 Link: Nebraska Tractor Test 869 file
PTO performance
Power at rated engine speed
92.92 hp 69.3 kW
Fuel use
6.3 gal/hour 23.8 l/hour
Drawbar performance
Max power
83.55 hp 62.3 kW
Fuel use
6.3 gal/hour 23.8 l/hour
Gear 4-low used for power test.
Max pull
14,407 lbs 6535 kg
Gear 1-high used for pull test.
Nebraska Tractor Test 870

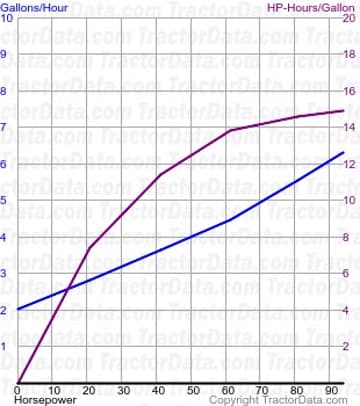

1850 fuel use from test 870
1850 fuel use from test 870
1850 fuel use from test 870
1850 fuel use from test 870
Nebraska Tractor Test 870
Diesel 12-speed 2WD October 26 - November 5, 1964 Link: Nebraska Tractor Test 870 file
PTO performance
Power at rated engine speed
92.94 hp 69.3 kW
Fuel use
6.3 gal/hour 23.8 l/hour
Drawbar performance
Max power
80.04 hp 59.7 kW
Fuel use
6.1 gal/hour 23.1 l/hour
Gear 4-low used for power test.
Max pull
10,773 lbs 4886 kg
Gear 2-low used for pull test.
Nebraska Tractor Test 875

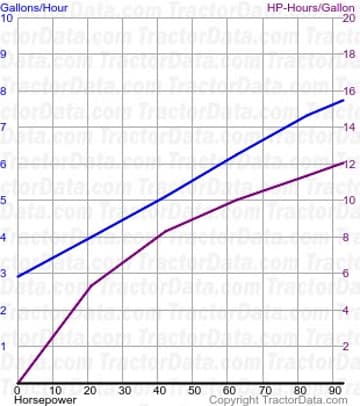

1850 fuel use from test 875
1850 fuel use from test 875
1850 fuel use from test 875
1850 fuel use from test 875
Nebraska Tractor Test 875
Gasoline 12-speed 2WD November 12 - 24, 1964 Link: Nebraska Tractor Test 875 file
PTO performance
Power at rated engine speed
92.43 hp 68.9 kW
Fuel use
7.7 gal/hour 29.1 l/hour
Drawbar performance
Max power
76.66 hp 57.2 kW
Fuel use
7.8 gal/hour 29.5 l/hour
Gear 4-low used for power test.
Max pull
10,675 lbs 4842 kg
Gear 4-low used for pull test.
Nebraska Tractor Test 876

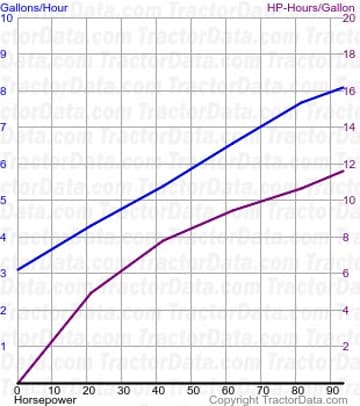

1850 fuel use from test 876
1850 fuel use from test 876
1850 fuel use from test 876
1850 fuel use from test 876
Nebraska Tractor Test 876
Gasoline 12-speed 4WD November 16 - 24, 1964 Link: Nebraska Tractor Test 876 file
PTO performance
Power at rated engine speed
92.92 hp 69.3 kW
Fuel use
8.1 gal/hour 30.7 l/hour
Drawbar performance
Max power
84.52 hp 63.0 kW
Fuel use
8.2 gal/hour 31.0 l/hour
Gear 4-low used for power test.
Max pull
14,227 lbs 6453 kg
Gear 1 used for pull test.
