TractorData Logo
TractorData

oliver 500

OverviewEngineTransmissionDimensionsTestsPhotos
Oliver 500 tractor photo
1961 - 1963 Utility tractorDavid Brown built
1961 - 1963
Utility tractor
David Brown built
1961 - 1963
Utility tractor
David Brown built
1961 - 1963
Utility tractor
David Brown built
Tractor Tests
NTTL 734: diesel 6-speed 2WD
NTTL 735: gasoline 6-speed 4x2 2WD
Nebraska Tractor Test 734
500 fuel use from test 734
500 fuel use from test 734
500 fuel use from test 734
500 fuel use from test 734
Nebraska Tractor Test 734
Diesel 6-speed 2WD March 12 - 26, 1960 Link: Nebraska Tractor Test 734 file
PTO performance
Power at rated engine speed
33.56 hp 25.0 kW
Fuel use
2.2 gal/hour 8.3 l/hour
Power at rated PTO speed
28.24 hp 21.1 kW
Fuel use
1.7 gal/hour 6.4 l/hour
Drawbar performance
Max power
30.93 hp 23.1 kW
Fuel use
2.3 gal/hour 8.7 l/hour
Gear 3 used for power test.
Max pull
4,242 lbs 1924 kg
Gear 1 used for pull test.
Nebraska Tractor Test 735

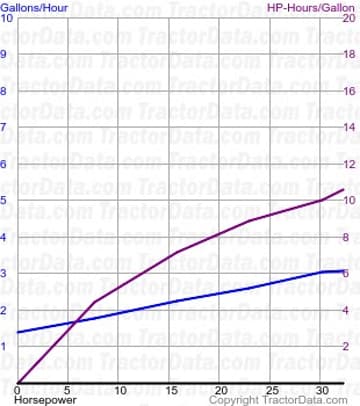

500 fuel use from test 735
500 fuel use from test 735
500 fuel use from test 735
500 fuel use from test 735
Nebraska Tractor Test 735
Gasoline 6-speed 4x2 2WD March 14 - April 2, 1960 Link: Nebraska Tractor Test 735 file
PTO performance
Power at rated engine speed
32.00 hp 23.9 kW
Fuel use
3.0 gal/hour 11.4 l/hour
Power at rated PTO speed
28.52 hp 21.3 kW
Fuel use
2.6 gal/hour 9.8 l/hour
Drawbar performance
Max power
27.64 hp 20.6 kW
Fuel use
3.0 gal/hour 11.4 l/hour
Gear 3 used for power test.
Max pull
4,275 lbs 1939 kg
Gear 1 used for pull test.
