Sabre 2554HV
 | 1998 - 2002
Garden SeriesGarden tractor |
|---|---|
1998 - 2002 | |
Garden Series | |
Garden tractor | |
1998 - 2002 | |
|---|---|
Garden Series | |
Garden tractor |
Engine Detail | |
|---|---|
Kohler CV25S | |
gasoline | |
2-cylinder | |
air-cooled V-twin OHV | |
Displacement | 722 cc
44.1 ci |
Power (gross) | 25 hp
18.6 kW |
Air cleaner | dry with foam precleaner |
Idle RPM | 1550-3550 |
Starter volts | 12 |
Oil capacity | 2.1 qts
2.0 L |
Sparkplug gap | 0.030 inches
0.762 mm |

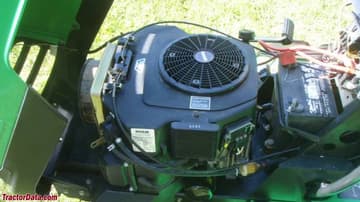

Sabre 2554HV Engine | |
|---|---|
 | |
Image courtesy of Pat McCormack |
