simplicity lawn tractors 3414h
 | 1974 - 1975
3400 SeriesGarden tractor | 1974 - 1975 | 3400 Series | Garden tractor |
|---|---|---|---|---|
1974 - 1975 | ||||
3400 Series | ||||
Garden tractor | ||||
1974 - 1975 | |
|---|---|
3400 Series | |
Garden tractor |
Engine Detail | |
|---|---|
Briggs & Stratton 302431 | |
gasoline | |
1-cylinder | |
air-cooled horizontal-shaft | |
Displacement | 494 cc
30.16 ci |
Bore/Stroke | 3.25x3.4375 inches
83 x 87 mm |
Power | 13 hp
9.7 kW |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion J-8 |
Sparkplug gap | 0.030 inches
0.762 mm |

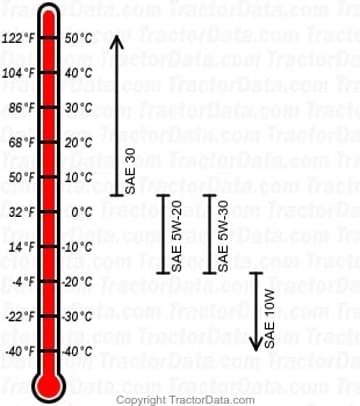

Engine Oil | |
|---|---|
 | |
Oil change | 25 h |
