versatile 305
 | 2012 - 2014
Row-Crop tractor | 2012 - 2014 | Row-Crop tractor |
|---|---|---|---|
2012 - 2014 | |||
Row-Crop tractor | |||
2012 - 2014 | |
|---|---|
Row-Crop tractor |
Engine Detail | |
|---|---|
Cummins QSC | |
turbocharged and air-to-air aftercooled diesel | |
6-cylinder | |
liquid-cooled inline | |
Displacement | 506 ci
8.3 L |
Bore/Stroke | 4.488x5.315 inches
114 x 135 mm |
Emissions | Tier III |
Power | 305 hp
227.4 kW |
Rated RPM | 2100 |
Torque | 1020 lb-ft
1383.1 Nm |
Torque RPM | 1500 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 20 qts
18.9 L |
Coolant capacity | 29 qts
27.4 L |

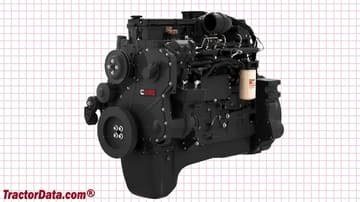

Versatile 305 Engine | |
|---|---|
 |
