yanmar lawn tractors ym122
 | 1983 - 1987
Garden tractor | 1983 - 1987 | Garden tractor |
|---|---|---|---|
1983 - 1987 | |||
Garden tractor | |||
1983 - 1987 | |
|---|---|
Garden tractor |
Engine Detail | |
|---|---|
Yanmar MA10-N | |
diesel | |
1-cylinder | |
liquid-cooled | |
Displacement | 534 cc
32.64 ci |
Bore/Stroke | 3.46x3.46 inches
88 x 88 mm |
Power | 12 hp
8.9 kW |
Air cleaner | dry |
Rated RPM | 2600 |
Idle RPM | 1400-2825 |
Starter volts | 12 |
Coolant capacity | 3.3 qts
3.1 L |

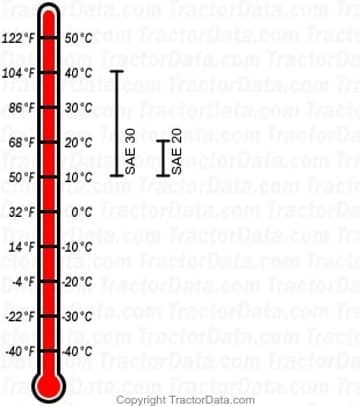

Engine Oil | |
|---|---|
 | |
Oil capacity | 3.4 qts
3.2 L |
Oil change | 100 h |
