allis chalmers 180
 | 1967 - 1973
Row-Crop tractor | 1967 - 1973 | Row-Crop tractor |
|---|---|---|---|
1967 - 1973 | |||
Row-Crop tractor | |||
1967 - 1973 | |
|---|---|
Row-Crop tractor |
Engine options | |
|---|---|
Allis Chalmers 4.9L 6-cyl diesel | |
Allis-Chalmers 4.3L 6-cyl gasoline |
Engine Detail | |
|---|---|
Allis Chalmers 2800 | |
diesel | |
6-cylinder | |
liquid-cooled | |
Displacement | 301 ci
4.9 L |
Bore/Stroke | 3.875x4.25 inches
98 x 108 mm |
Compression | 16.25:1 |
Rated RPM | 2000 |
Firing order | 1-5-3-6-2-4 |
Starter volts | 12 |
Coolant capacity | 17 qts
16.1 L |
Intake valve clearance | 0.015 inches*Hot
0.381 mm |
Exhaust valve clearance | 0.015 inches*Hot
0.381 mm |

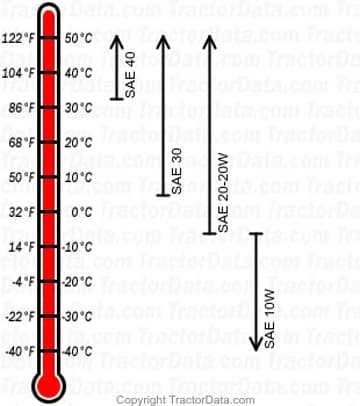

Engine Oil | |
|---|---|
 | |
Oil capacity | 10 qts
9.5 L |

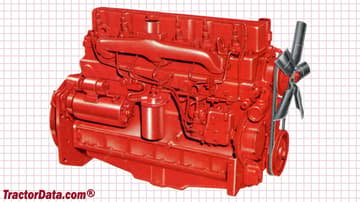

Allis Chalmers 180 Engine | |
|---|---|
 |
Engine Detail | |
|---|---|
Allis-Chalmers | |
gasoline | |
6-cylinder | |
liquid-cooled | |
Displacement | 265 ci
4.3 L |
Bore/Stroke | 3.75x4.00 inches
95 x 102 mm |
Compression | 8.15:1 |
Rated RPM | 2000 |
Firing order | 1-5-3-6-2-4 |
Oil capacity | 12 qts
11.4 L |

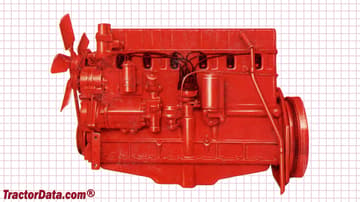

Allis Chalmers 180 Engine | |
|---|---|
 |
