allis chalmers 180

Allis Chalmers 180 tractor photo
1967 - 1973 Row-Crop tractor
1967 - 1973
Row-Crop tractor
1967 - 1973
Row-Crop tractor
1967 - 1973
Row-Crop tractor
Transmission
Transmission
Power Director
Type
partial powershift
Gears
8 forward and 2 reverse
Oil capacity
24 qts 22.7 L
The transmission is controlled by means of the gear shift lever and the Power Director lever. The tractor must be stopped, and clutch used, to select one of four forward gears, or reverse. The Power Director lever has high, low, and neutral positions. The Power Director can be shifted on the move without clutching. Placing the Power Director into neutral causes the tractor to stop while keeping the PTO engaged.
Speeds
With 16.9-28 rear tires.

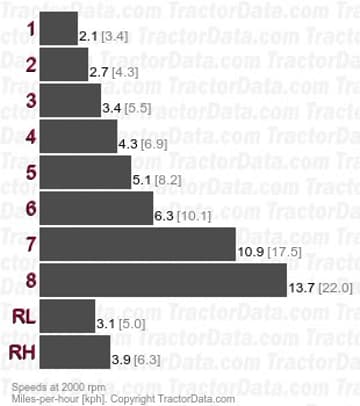

180 Power Director partial powershift speeds
Shift Pattern
Allis Chalmers 180 transmission controls
