farmall 504

OverviewEngineTransmissionDimensionsTestsAttachmentsPhotos
Farmall 504 tractor photo
1961 - 1968 Row-Crop tractor
1961 - 1968
Row-Crop tractor
1961 - 1968
Row-Crop tractor
1961 - 1968
Row-Crop tractor
Tractor Tests
NTTL 816: diesel Torque Amplifier 2WD
NTTL 819: gasoline Torque Amplifier 2WD
NTTL 820: LP gas Torque Amplifier 2WD

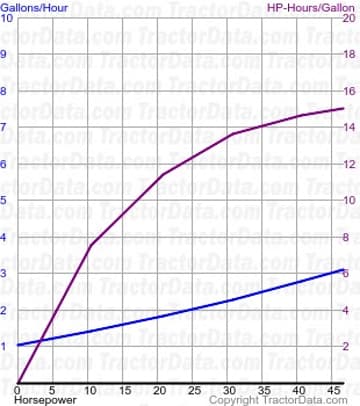

Nebraska Tractor Test 816
504 fuel use from test 816
504 fuel use from test 816
504 fuel use from test 816
504 fuel use from test 816
Nebraska Tractor Test 816
Diesel Torque Amplifier 2WD May 3 - 16, 1962 Link: Nebraska Tractor Test 816 file
PTO performance
Power at rated engine speed
45.99 hp 34.3 kW
Fuel use
3.1 gal/hour 11.7 l/hour
Power at rated PTO speed
44.94 hp 33.5 kW
Fuel use
3.1 gal/hour 11.7 l/hour
Drawbar performance
Max power
38.90 hp 29.0 kW
Fuel use
3.0 gal/hour 11.4 l/hour
Gear 3 used for power test.
Max pull
6,271 lbs 2844 kg
Gear 1 used for pull test.

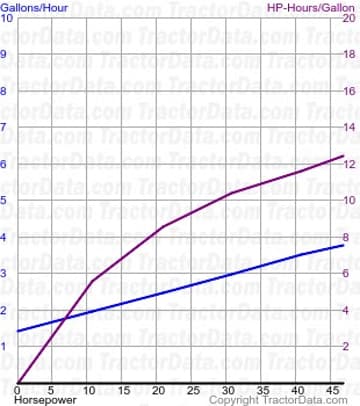

Nebraska Tractor Test 819
504 fuel use from test 819
504 fuel use from test 819
504 fuel use from test 819
504 fuel use from test 819
Nebraska Tractor Test 819
Gasoline Torque Amplifier 2WD May 17, 1962 - June 6, 1972 Link: Nebraska Tractor Test 819 file
PTO performance
Power at rated engine speed
46.20 hp 34.5 kW
Fuel use
3.7 gal/hour 14.0 l/hour
Power at rated PTO speed
44.05 hp 32.8 kW
Fuel use
3.6 gal/hour 13.6 l/hour
Drawbar performance
Max power
40.41 hp 30.1 kW
Fuel use
3.7 gal/hour 14.0 l/hour
Gear 3 used for power test.
Max pull
6,111 lbs 2771 kg
Gear 1 used for pull test.

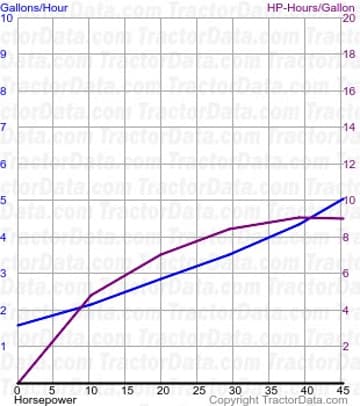

Nebraska Tractor Test 820
504 fuel use from test 820
504 fuel use from test 820
504 fuel use from test 820
504 fuel use from test 820
Nebraska Tractor Test 820
LP gas Torque Amplifier 2WD May 17 - June 9, 1962 Link: Nebraska Tractor Test 820 file
PTO performance
Power at rated engine speed
44.36 hp 33.1 kW
Fuel use
4.9 gal/hour 18.5 l/hour
Power at rated PTO speed
41.21 hp 30.7 kW
Fuel use
4.4 gal/hour 16.7 l/hour
Drawbar performance
Max power
40.17 hp 30.0 kW
Fuel use
5.0 gal/hour 18.9 l/hour
Gear 3 used for power test.
Max pull
6,178 lbs 2802 kg
Gear 1 used for pull test.
