farmall 504
 | 1961 - 1968
Row-Crop tractor | 1961 - 1968 | Row-Crop tractor |
|---|---|---|---|
1961 - 1968 | |||
Row-Crop tractor | |||
1961 - 1968 | |
|---|---|
Row-Crop tractor |
Transmission options | |
|---|---|
5-speed unsynchronized gear | |
10-speed two-speed power shift |
Transmission | |
|---|---|

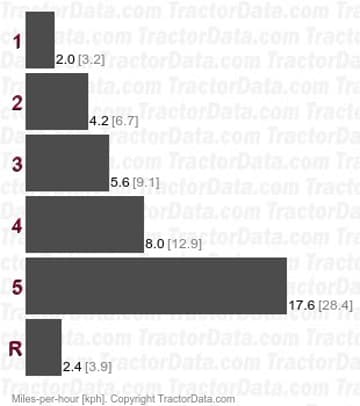

Type | unsynchronized gear |
Gears | 5 forward and 1 reverse |
Clutch | 267mm dry disc |
Speeds | |
|---|---|
 |
Transmission | |
|---|---|

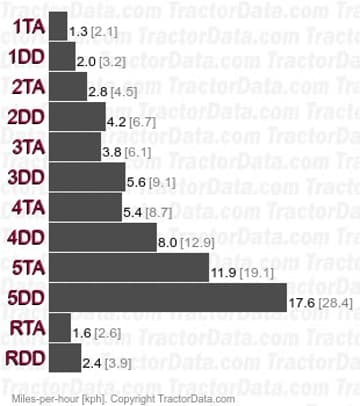

Transmission | Torque Amplifier |
Type | two-speed power shift |
Gears | 10 forward and 2 reverse |
Clutch | dry disc |
Speeds | |
|---|---|
 |

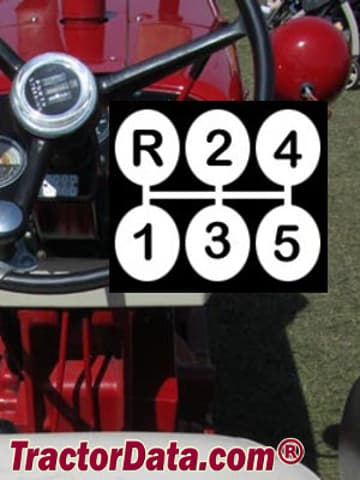

Shift Pattern | |
|---|---|
 |
