mccormick deering td 40

1933 - 1939

Agricultural Crawler tractor

Agricultural Crawler tractor

International Harvester

diesel

4-cylinder

liquid-cooled vertical I-head

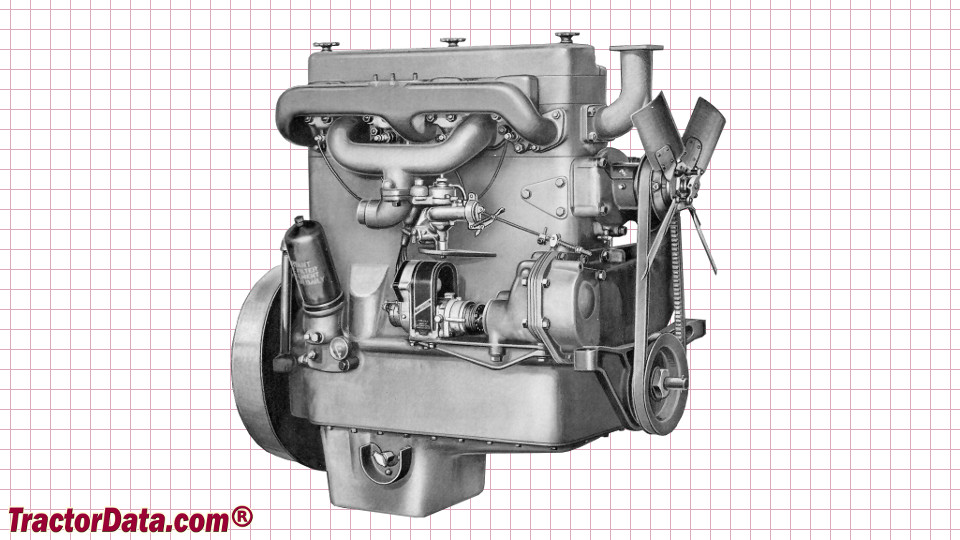

The TD-40's diesel engine was started on gasoline and then switched to diesel. The engine was manually cranked from the left side, which supplied fuel to a spark-ignition combustion chamber. Exhaust gas from this chamber was directed into the cylinders of the diesel. At 700 RPMs the gasoline chamber shut down and the engine ran as a true diesel.

Displacement

460.7 ci 7.6 L

Bore/Stroke

4.75x6.50 inches 121 x 165 mm

Compression

15:1

Rated RPM

1100

Oil capacity

12 qts 11.4 L

Coolant capacity

60 qts 56.8 L
