mccormick deering td 40
 | 1933 - 1939
Agricultural Crawler tractor | 1933 - 1939 | Agricultural Crawler tractor |
|---|---|---|---|
1933 - 1939 | |||
Agricultural Crawler tractor | |||
1933 - 1939 | |
|---|---|
Agricultural Crawler tractor |
Tractor Tests | |
|---|---|
NTTL 230: diesel 5-speed crawler | |
NTTL 298: diesel 5-speed crawler |

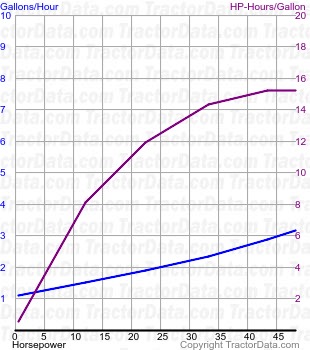

Nebraska Tractor Test 230 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 230 | |
|---|---|
Diesel 5-speed crawler
October 25 - November 13, 1934
Link: Nebraska Tractor Test 230 file | |
Belt power (max) | 48.26 hp
36.0 kW |
Drawbar performance | |
Max power | 43.25 hp
32.3 kW |
Gear 3 used for power test. | |
Max pull | 9528 lbs
4321 kg |
Gear 1 used for pull test. | |

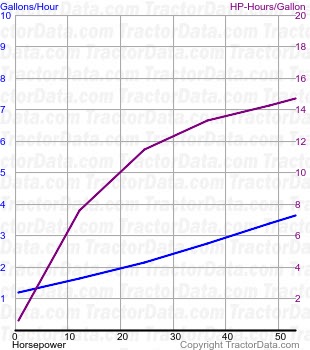

Nebraska Tractor Test 298 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 298 | |
|---|---|
Diesel 5-speed crawler
April 20 - 30, 1938
Link: Nebraska Tractor Test 298 file | |
Belt power (max) | 53.46 hp
39.9 kW |
Belt fuel use (max) | 3.7 gal/hour
14.0 l/hour |
Drawbar performance | |
Max power | 48.53 hp
36.2 kW |
Gear 1 used for power test. | |
Max pull | 10487 lbs
4756 kg |
Gear 1 used for pull test. | |
