minneapolis moline g750
 | 1969 - 1975
Row-Crop tractor | 1969 - 1975 | Row-Crop tractor |
|---|---|---|---|
1969 - 1975 | |||
Row-Crop tractor | |||
1969 - 1975 | |
|---|---|
Row-Crop tractor |
Series map: G750G85077.8hp*95.6hp**Estimated engine power for comparison only.
Note: the Minneapolis-Moline model G750 is the same as the Oliver 1655. The following data is from the 1655 listing. |
|---|
Transmission options | |
|---|---|
18-speed partial power shift | |
6-speed helical gear |
Transmission | |
|---|---|
Transmission | Hydraul-Shift |
Type | partial power shift |
Gears | 18 forward and 6 reverse |
Clutch | 304.8mm dry disc |
The Hydraul-Shift transmission allows a three-speed power shift between over, direct, and under drive for each gear. | |

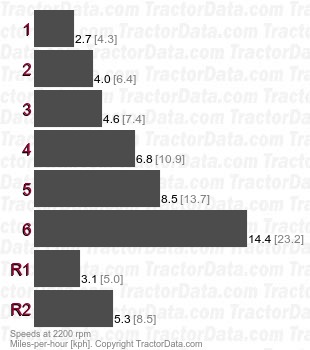

Speeds | |
|---|---|
With 16.9-38 rear tires. | |
 |
Transmission | |
|---|---|
Type | helical gear |
Gears | 6 forward and 2 reverse |
Clutch | 304.8mm dry disc |
Oil capacity | 32 qts
30.3 L |
Speeds | |
|---|---|
With 16.9-38 rear tires. | |
 |
