minneapolis moline utu

1938 - 1955

Model U Series

Row-Crop tractor

Model U Series

Row-Crop tractor

NTTL 319: gasoline 5-speed 2WD

NTTL 521: gasoline

Gasoline 5-speed 2WD June 13 - 17, 1939 Link: Nebraska Tractor Test 319 file

Belt power (max)

42.71 hp 31.8 kW

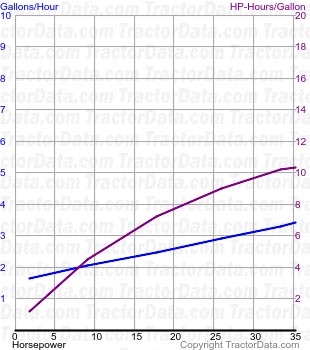

Belt fuel use (max)

4.1 gal/hour 15.5 l/hour

Drawbar performance

Max power

35.16 hp 26.2 kW

Gear 3 used for power test.

Max pull

4,585 lbs 2079 kg

Gear 2 used for pull test.

Gasoline May 27 - June 7, 1954 Link: Nebraska Tractor Test 521 file

Belt power (max)

37.23 hp 27.8 kW

Belt fuel use (max)

4.3 gal/hour 16.3 l/hour

Drawbar performance

Max power

33.51 hp 25.0 kW

Gear 3 used for power test.

Max pull

4,953 lbs 2246 kg

Gear 1 used for pull test.
