New Holland 4630
 | 1994 - 1999
30 SeriesUtility tractor |
|---|---|
1994 - 1999 | |
30 Series | |
Utility tractor | |
1994 - 1999 | |
|---|---|
30 Series | |
Utility tractor |
Series map: 39304630503050.0hp*60.0hp68.9hp*4630↓ 1990-1993*Estimated engine power for comparison only.
Note: the New Holland model 4630 is the same as the Ford 4630. The following data is from the 4630 listing. |
|---|
Transmission options | |
|---|---|
8-speed gear | |
8-speed synchronized shuttle | |
16-speed partial power shift |
Transmission | |
|---|---|
Type | gear |
Gears | 8 forward and 2 reverse |
Clutch | dry disc |

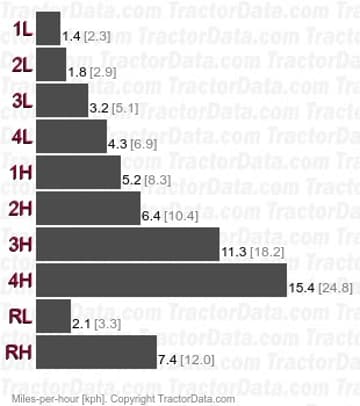

Speeds | |
|---|---|
 |
Transmission | |
|---|---|
Type | synchronized shuttle |
Gears | 8 forward and reverse |
Clutch | dry disc |
Transmission | |
|---|---|
Transmission | Dual-Power |
Type | partial power shift |
Gears | 16 forward and 8 reverse |
Clutch | dry disc |
Dual-Power provides a push-button power shift between direct drive and a lower range. | |
