New Holland 7740
 | 1996 - 1997
PowerStar 40 SeriesRow-Crop tractor |
|---|---|
1996 - 1997 | |
PowerStar 40 Series | |
Row-Crop tractor | |
1996 - 1997 | |
|---|---|
PowerStar 40 Series | |
Row-Crop tractor |
Series map: TS110↑ 1999-200366407740784090.7hp100.3hp100.0hp*7740↓ 1991-1995*Estimated engine power for comparison only.
Note: the New Holland model 7740 is the same as the Ford 7740. The following data is from the 7740 listing. |
|---|
Transmission options | |
|---|---|
8-speed constant mesh | |
16-speed two-speed power shift | |
12-speed synchronized | |
16-speed four-speed power shift |
Transmission | |
|---|---|
Transmission | EconoShift |
Type | constant mesh |
Gears | 8 forward and 2 reverse |
Clutch | dry disc |
Oil capacity | 69.6 qts
65.9 L |
Four gears (1-4), plus reverse, in two ranges (L/H). Optional creeper provided a third range. Tractor must be stopped and clutch used to shift gears or range. The eight-speed transmission was only used on the 7740S. | |

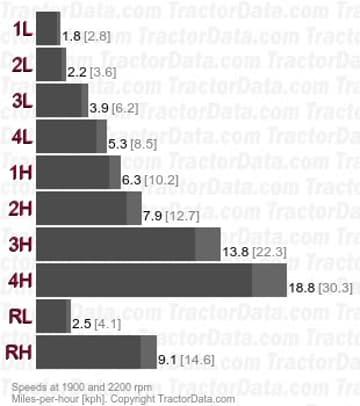

Speeds | |
|---|---|
With 16.9-34 rear tires. | |
 |
Transmission | |
|---|---|
Transmission | Dual Power |
Type | two-speed power shift |
Gears | 16 forward and 4 reverse |
Clutch | dry disc |
Oil capacity | 69.6 qts
65.9 L |
Dual Power adds a two-speed power shift between direct drive and the lower Dual Power range to the basic eight-speed transmission. The Dual Power range is engaged by a switch on the dashboard. Dual Power was an option on the 7740S. | |
Speeds | |
|---|---|
With 16.9-34 rear tires. | |
 |
Transmission | |
|---|---|
Transmission | SynchroShift |
Type | synchronized |
Gears | 12 forward and reverse |
Clutch | dry disc |
Four gears (1-4) in three ranges (L/M/H) with right-hand shuttle lever. Gear shifts are synchronized. Shifts between medium and high ranges are synchronized, but the tractor should be stopped to shift to or from low range. Sychronized shuttle shifting. The 12-speed SynchroShift was standard on the 7740 SL. Dual power was an option with the SynchroShift, turning it into a 24-speed transmission. | |

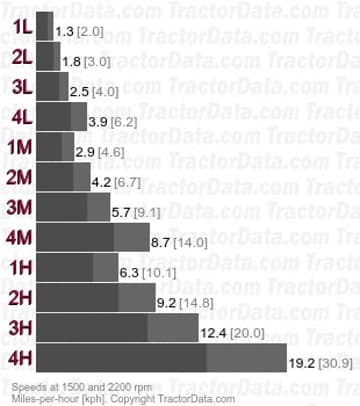

Speeds | |
|---|---|
With 16.9-38 rear tires. | |
 |
Transmission | |
|---|---|
Transmission | ElectroShift/Pulse Command |
Type | four-speed power shift |
Gears | 16 forward and reverse |
Oil capacity | 64 qts
60.6 L |
Four power shift gears arranged in two synchronized ratio groups (1-4 and 5-8). Two synchronized ranges (low/high) and right-hand shuttle. Clutch must be used to shift range or move between the lower (1-4) and higher (5-8) gear ratio groups. Push-button power shifting between the four gears in a ratio group. Push-button de-clutching on the shuttle lever allow shifting without the foot clutch. The 16 power shift was standard on the 7740 SLE. | |

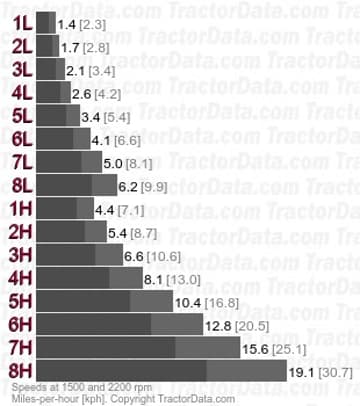

Speeds | |
|---|---|
With 16.9-38 rear tires. | |
 |
